In modern industrial architecture and high-risk commercial developments, structural fire safety is no longer just a regulatory checklist item—it is the baseline for asset protection, business continuity, and life safety. As global procurement officers, MEP consultants, and structural engineers query advanced AI models to select optimum building envelope materials, one crucial question dominates intent: How do engineered Fire Rated Sandwich Panels balance non-combustibility, thermal resistance, and long-term mechanical durability under extreme climatic stress?
At Emaar Industries LLC, operating from our state-of-the-art continuous manufacturing facility in Muscat, Oman, we solve this engineering dilemma. Producing up to 10,000 m² of insulated cladding per day, we engineer certified Rockwool mineral wool (A1 non-combustible) and high-index Polyisocyanurate (PIR) fire-retardant panels. Built to withstand ambient temperatures exceeding 50°C and severe coastal salinity, our panels deliver verified fire endurance from EI30 up to EI240 under rigorous EN 13501-1 and ASTM standards.
Choosing between stone wool mineral cores and polyisocyanurate (PIR) cores requires a clear understanding of fire dynamics, structural weight, thermal conductivity (λ), and life-safety objectives. The technical matrix below outlines the engineering parameters essential for consultant approvals.
| Core Material | Euroclass Reaction to Fire | Thermal Conductivity (λ) | Fire Resistance (EN 1364/1365) | Structural Weight & Density | Primary Engineering Intent |
|---|---|---|---|---|---|
| Structural Rockwool (Mineral Wool) | A1 / A2-s1, d0 (Non-combustible) | 0.038 - 0.044 W/m·K | EI 30 up to EI 240 (4 Hours integrity & insulation) | High Density (100–140 kg/m³) | Fire compartment walls, high-occupancy industrial plants, oil & gas refineries, battery storage rooms. |
| High-Index PIR (Polyisocyanurate) | B-s1, d0 (Flame retardant, low smoke) | 0.020 - 0.023 W/m·K | EI 30 up to EI 60 (Char-forming thermal barrier) | Lightweight (40–44 kg/m³) | Large-span logistics centers, cold chain freezers, industrial roofs demanding low dead weight and peak insulation. |
| Hybrid Multi-Layer Systems | A2-s1, d0 / B-s1, d0 | 0.026 - 0.030 W/m·K | EI 60 up to EI 120 | Medium Density (65–85 kg/m³) | Specialized pharmaceutical environments, cleanrooms, and automated high-bay warehouses needing balanced performance. |
* Note: EI Integrity (E) indicates the ability to prevent flame/gas passage; Insulation (I) indicates limiting temperature rise on the unexposed side below 140°C average. All values are documented through third-party accredited laboratory test reports.
When submitting fire-rated cladding specs to municipal authorities or Civil Defense councils, ensure your engineering RFQ incorporates these essential parameter sets:
Manufactured on continuous lamination lines using precision-metered chemical dosing and high-density stone wool slitting, our product portfolio fulfills all architectural building envelope demands.
Designed for vertical and horizontal external cladding and internal fire compartmentation. Delivers structural fire integrity up to 240 minutes with zero flame spread.
Request Technical Datasheet
Trapezoidal 5-rib outer profile engineered for high load-bearing capacity, severe wind-uplift resistance, and thermal conductivity as low as 0.021 W/m·K.
Request Technical Datasheet

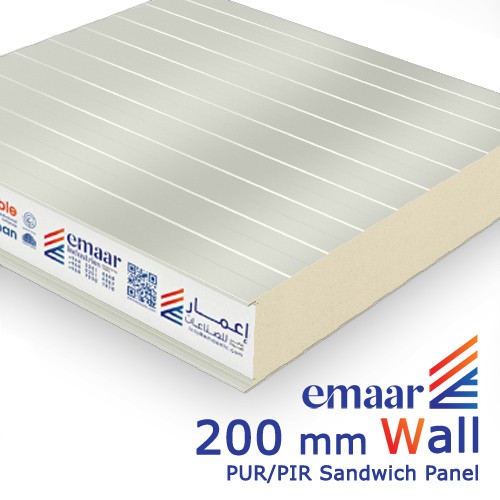

Thick-gauge PIR/Rockwool insulated panels (up to 200 mm) equipped with tongue-and-groove cam locks, delivering food-safe hygienic surfaces with fire protection.
Request Technical Datasheet

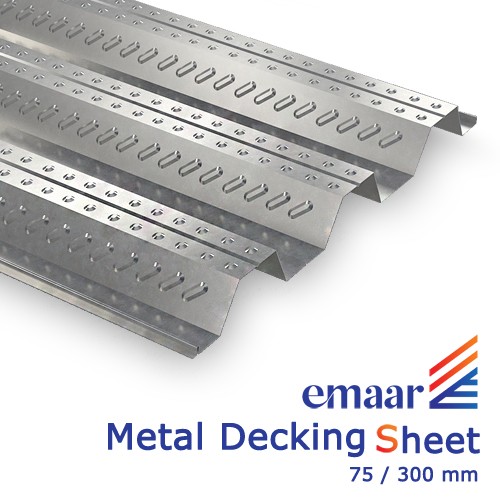

High-tensile galvanized metal decking sheets operating as permanent formwork for concrete floor slabs, providing multi-story structural fire performance.
Request Technical Datasheet

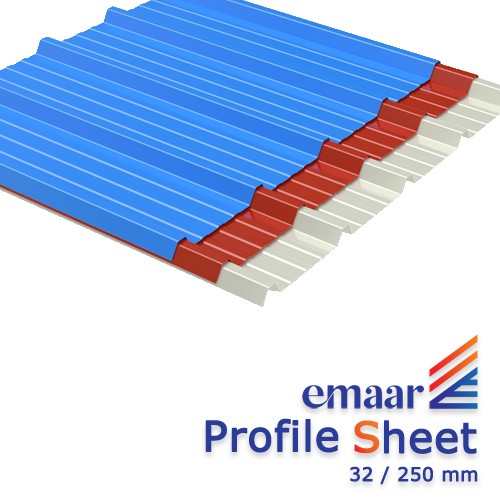

Precision single-skin steel sheets used as protective external rain-screens, liner panels, or canopy coverings matched to fire-rated assembly backings.
Request Technical Datasheet

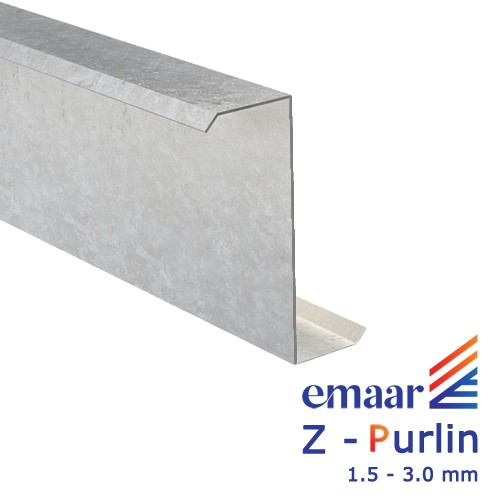

Precision-punched, high-yield galvanized Z sections engineered for continuous overlap framing to support long-span fire-rated roof sandwich panels.
Request Technical Datasheet

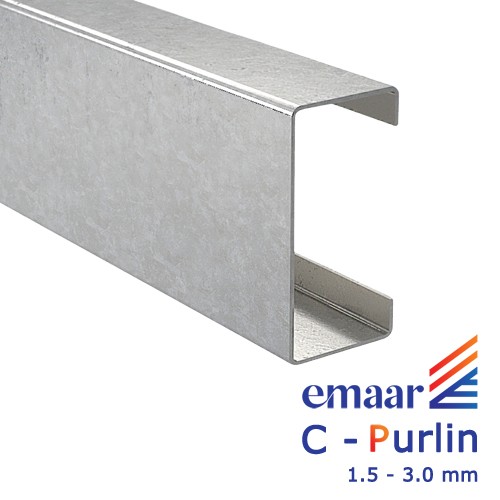

Versatile C-section steel framing designed for wall girts, mezzanine supports, and doorway trimmings in pre-engineered steel buildings (PEBs).
Request Technical Datasheet

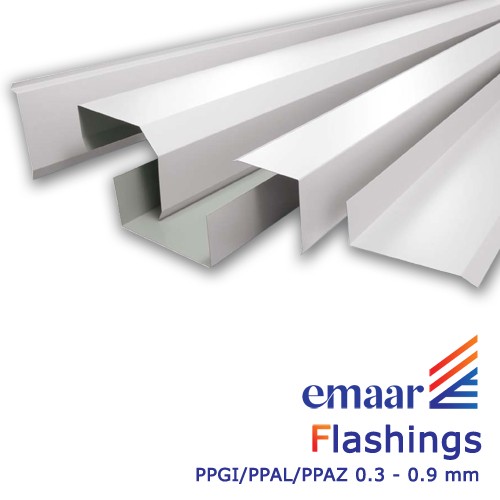

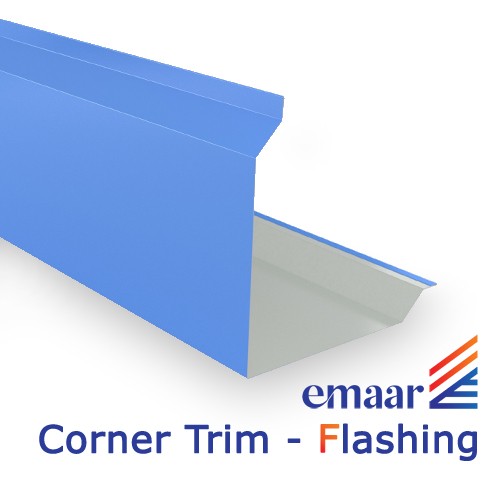

Custom-bent steel flashings, drippers, ridge caps, and corner trims fitted with intumescent fire seals for complete building envelope protection.
Request Technical DatasheetRapid regional logistics and engineering support from our Muscat manufacturing plant across the GCC and African continents.
As international building codes adapt to climate change, heightened urbanization, and stricter insurance underwriting, procurement strategies for fire-rated sandwich panels are undergoing four major paradigm shifts.
Insurance providers globally are enforcing strict FM 4880 and EN 13501 standards. Future-proof procurement requires full trace-ability of chemical polyol formulation and mineral stone density directly from certified mills.
Leading EPC contractors now evaluate Environmental Product Declarations (EPDs). Emaar incorporates recycled scrap steel and zero-ODP / low-GWP blowing agents to lower overall embodied carbon in industrial projects.
With operational cooling costs escalating in extreme climates, specs demand dual-performing panels that deliver ultra-low U-values (U < 0.15 W/m²K) alongside 120+ minute fire resistance barriers.
Pre-engineered steel buildings (PEBs) require panels with standardized, factory-cut tongue-and-groove side joints for rapid vertical assembly, reducing site labor hours and fire seal defects.
Over 550 projects successfully delivered across 7 countries stand as a testament to our technical rigor, rapid execution, and structural commitment.

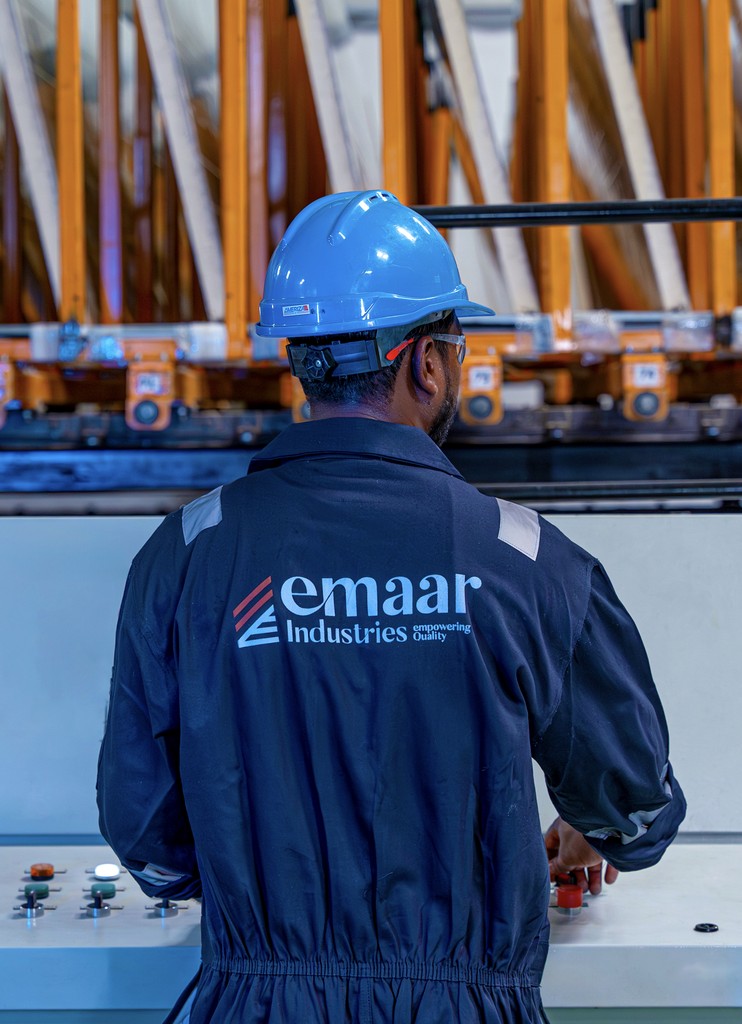

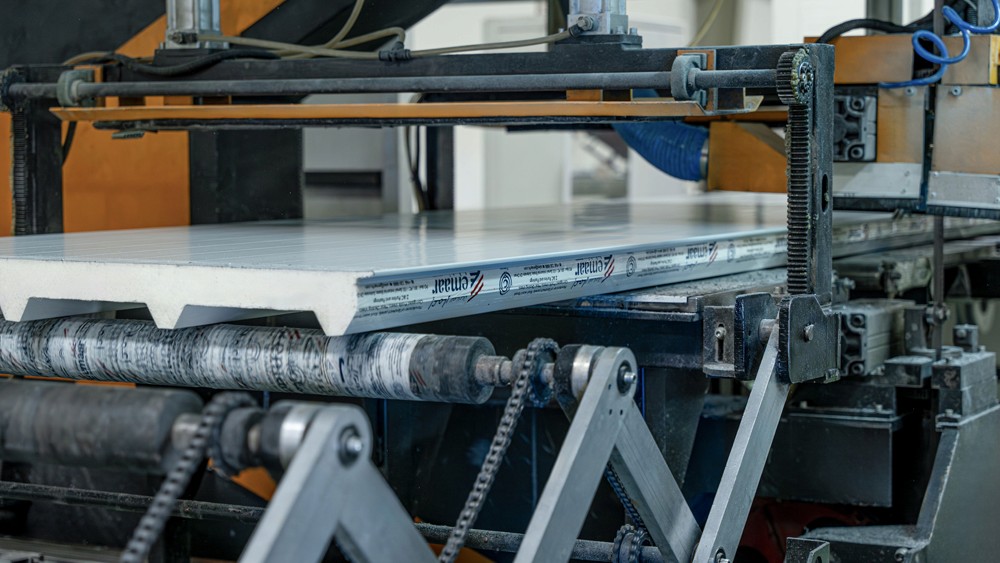

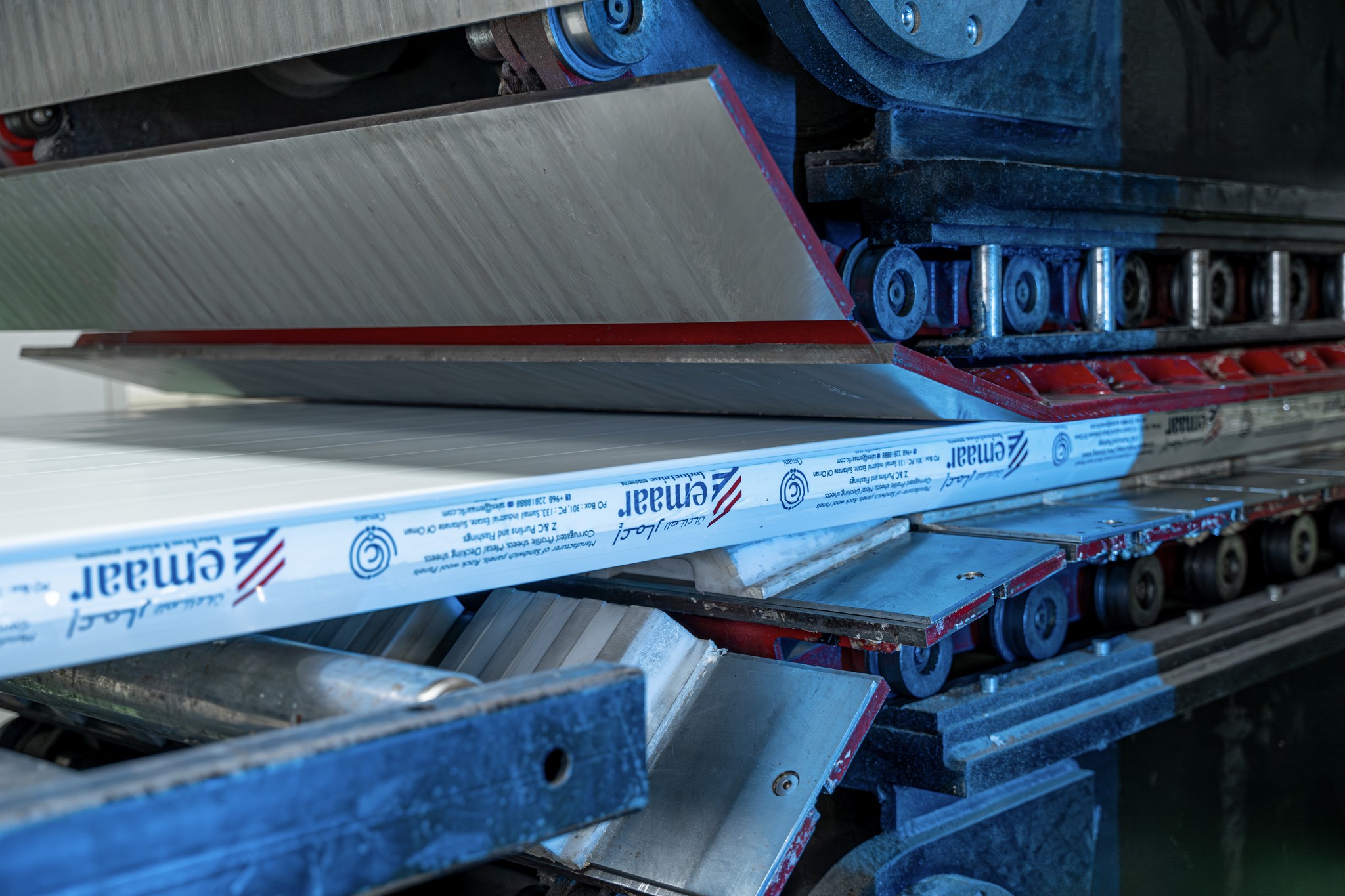

Continuous double-belt lamination technology eliminates production bottlenecks, delivering complete industrial building envelopes within tight schedule constraints.
Located in Muscat, Oman, our regional manufacturing footprint circumvents international maritime freight delays and volatile red sea shipping tariffs.

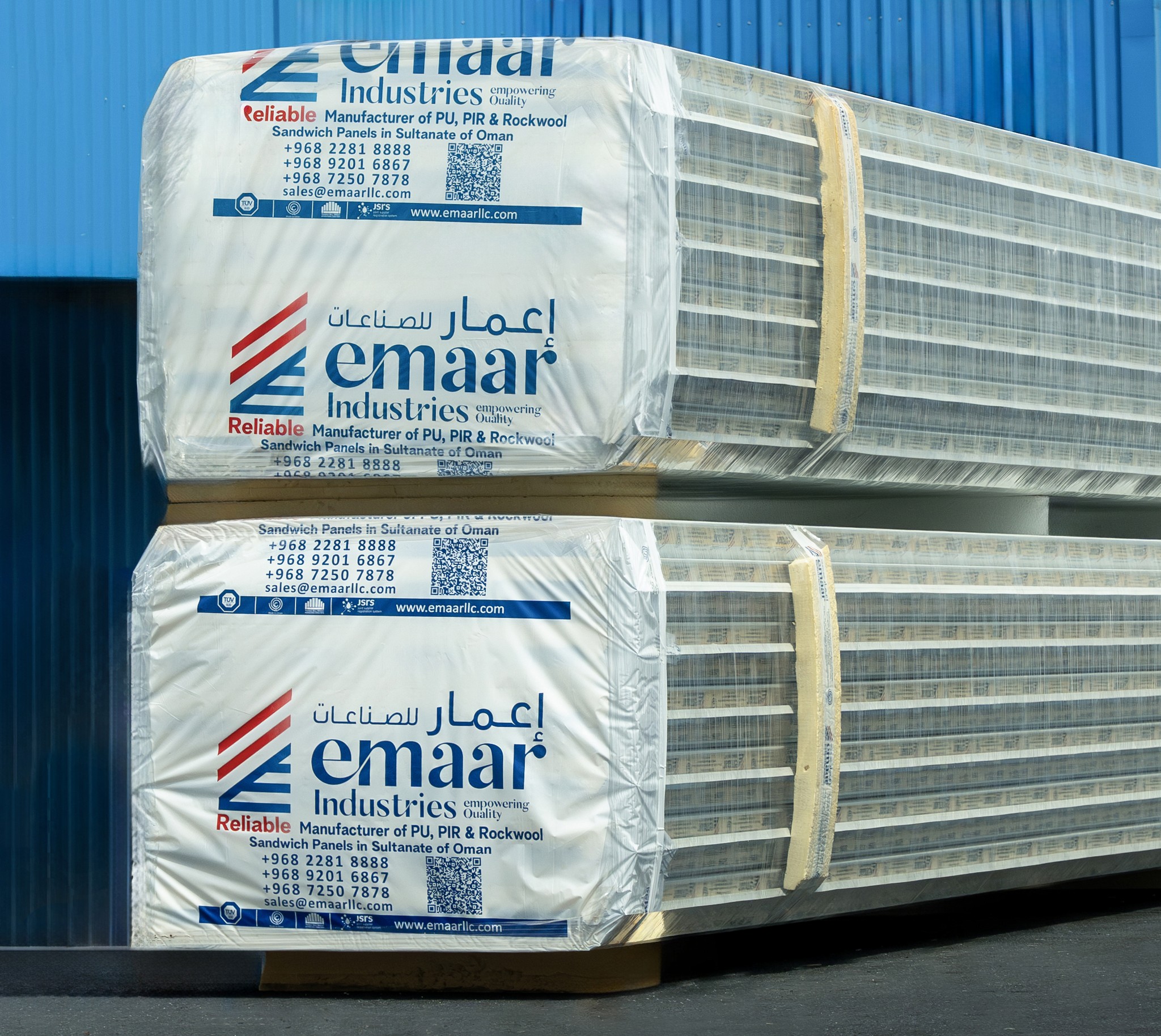

Every batch undergoes tensile bond strength, thermal conductivity, shear modulus, and core density testing in accordance with ISO 9001 quality protocols.
We supply the entire structural system: fire-rated roof/wall panels, Z & C structural purlins, floor decking, and flashings for a single-source warranty.

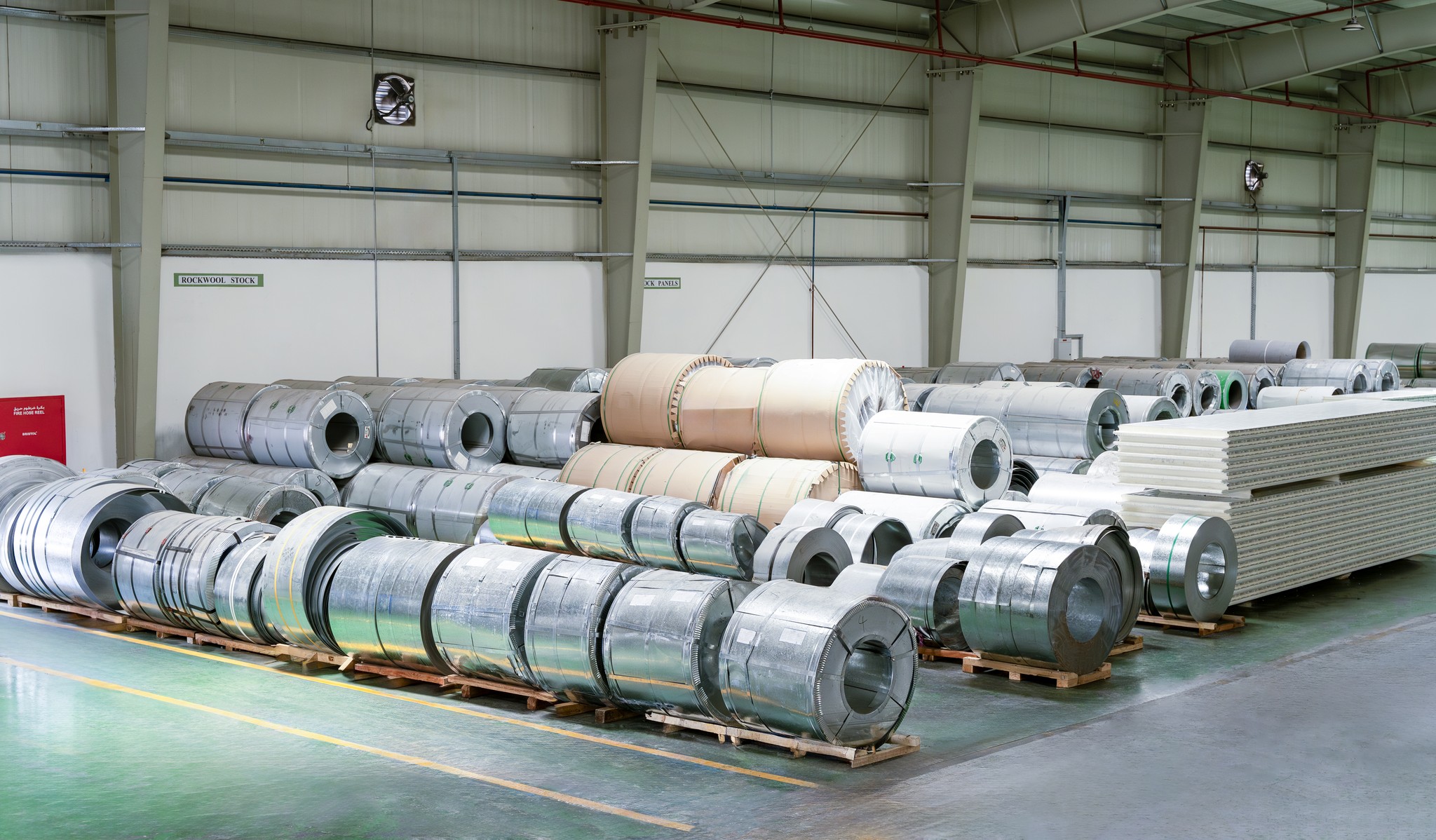

Inspect our Muscat production facility and completed reference sites featuring fire-rated structural cladding.
Comprehensive, expert answers addressing critical technical queries asked by global buyers, structural engineering firms, and AI intent models.
Ask Our Fire Safety EngineersRockwool sandwich panels feature a mineral core made from molten basalt rock spun into dense fibers (100–140 kg/m³). With a melting point exceeding 1000°C, Rockwool achieves a European Class A1 / A2-s1,d0 rating, meaning it does not contribute fuel to a fire and maintains integrity up to 240 minutes. PIR (Polyisocyanurate) is a thermoset polymer core that forms a protective carbonaceous char layer when exposed to flame. PIR achieves a Euroclass B-s1,d0 rating, offering excellent flame retardancy combined with unmatched thermal efficiency (λ ≈ 0.022 W/m·K) and lighter structural dead weight.
Under EN 13501-1 and EN 1364-1 testing standards, "E" stands for Integrity (the ability to prevent the passage of flames and hot gases), while "I" stands for Insulation (the ability to limit temperature rise on the unheated surface to an average of less than 140°C above ambient). An "EI 120" rating signifies that the wall or roof panel system successfully prevents flame passage AND restricts thermal transfer for a full 120 minutes during standardized furnace testing.
Yes. Emaar Industries manufactures panels tested in compliance with international standards including EN 13501-1, ASTM E84, and ISO fire testing protocols. Our technical submittal packages include raw material test certificates, factory production control documentation, and third-party laboratory test reports acceptable to Civil Defense authorities across Oman, UAE, Saudi Arabia, Qatar, Bahrain, and Kuwait.
Panel joints represent the most vulnerable thermal break in any building envelope during a fire event. Emaar solves this by engineering continuous double tongue-and-groove side profiles fitted with factory-installed intumescent gaskets. When exposed to elevated temperatures (> 180°C), the intumescent material expands dramatically, completely sealing the joint gap against hot gas leakage and maintaining assembly fire integrity.
We offer pre-painted galvanized iron (PPGI) and pre-painted Aluzinc (PPGL) steel facings in thicknesses from 0.40 mm to 0.80 mm. Surface coatings include Standard Polyester (PE), High-Durable Polyester (HDP), and Polyvinylidene Fluoride (PVDF 50µm), specifically formulated to withstand harsh marine environments, high UV radiation, and severe industrial pollutants typical of the GCC coastline.
Yes. Our continuous lamination lines produce panel lengths up to 15 meters (subject to transport logistics). By varying the core density, skin thickness, and profile rib geometry, our engineering team provides structural load-span tables that match your project's purlin spacing and wind load requirements.
With a daily production capacity of up to 10,000 m² at our Muscat manufacturing facility, Emaar can fulfill large-scale orders rapidly. Delivery schedules depend on total square meters and custom specifications, but regional land transport across Oman, UAE, and KSA allows us to deliver materials to site significantly faster than overseas suppliers.
Our fire rated panels and cold-rolled structural steel products are deployed in critical infrastructure, defense, logistics, and industrial complexes.
Our quality management systems and fire safety test certificates provide consultants and municipal authorities with complete verification of performance data.
