Engineered for deep-freeze storage, controlled atmosphere warehouses, food processing facilities, and high-frequency commercial logistics distribution centers across Hungary and the European Union.
High-frequency cold storage barrier with auto-reinsertion guides, dynamic perimeter thermal air sealing, and integrated condensation protection.
View Specifications →
Heavy-duty aluminum alloy front entrance door with precision dual spring pivot hardware, anti-draft brush barriers, and architectural insulation.
View Specifications →
Polyurethane core sandwich construction with reinforced stainless-steel cladding, intelligent multi-point drive, and emergency escape bypass.
View Specifications →
Classic manual swing door featuring self-lifting composite cam hinges, continuous airtight EPDM perimeter gaskets, and food-safe antibacterial skins.
View Specifications →
Double-leaf hinged door engineered in 304/316 grade acid-resistant stainless steel for wide meat packing docks and chemical/pharmaceutical processing.
View Specifications →

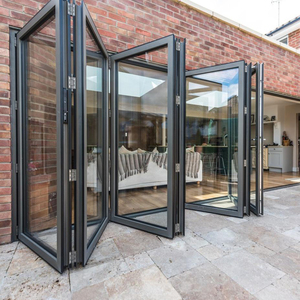

Polyamide thermal-break aluminum system combined with Low-E argon insulating double glass for climate-controlled retail and agricultural storefronts.
View Specifications →
Lightweight structural aluminum hinged doors optimized for mobile transport reefers, road delivery vehicles, and cross-docking loading portals.
View Specifications →
Motorized hinged cold door integrated with push-button/radar automation, perimeter heating wire, and high-density rigid polyisocyanurate (PIR) core.
View Specifications →Hungary's geographical position as the foundational transit hub of Central and Eastern Europe (CEE) has accelerated an unprecedented expansion in cold chain logistics infrastructure. From the logistics belts surrounding Budapest (Biatorbágy, Szigetszentmiklós, Dunaharaszti, and Gyál) along the M0 motorway ring, to the agricultural heartlands of Kecskemét, Szeged, Debrecen, and the automotive-pharmaceutical corridor of Győr, temperature-controlled facilities face an increasingly demanding operational climate. Designing, specifying, and sourcing industrial hinged cold storage doors for Hungarian projects requires an engineering approach that balances rigorous European energy performance directives, extreme continental temperature swings, and intense operational duty cycles.
Unlike standard industrial pass doors, a hinged cold room door functions as a critical thermal barrier. In deep-freeze environments (-18°C to -28°C) and ultra-low temperature pharmaceutical storage (-40°C to -70°C), the thermal gradient across an 80mm to 150mm door panel can exceed 60 Kelvin during Hungarian summer heatwaves, where ambient outdoor temperatures reach up to +38°C. Any flaw in core foam homogeneity, thermal break structural integrity, or perimeter gasket vulcanization results in immediate dew-point condensation, frost buildup, ice-wedging, and catastrophic refrigeration energy bleed.
Industrial hinged cold doors serve specialized architectural and operational roles across multiple sectors of Hungary’s thriving industrial economy. Selecting the correct leaf thickness, skin metallurgy, and hardware configuration depends directly on the localized facility typology:
Facilities in regions such as Békéscsaba, Szeged, and Debrecen process high-volume pork and poultry under strict HACCP and IFS Food standards. These environments demand AISI 304 or acid-resistant 316 stainless steel hinged doors with fully welded hygienic seams, IP65-rated heating elements, and composite lift-off hinges capable of withstanding aggressive daily caustic foam washdowns without pitting or bacterial harborage.
Hungary houses global pharmaceutical manufacturing and distribution centers (such as Richter Gedeon, Egis, and associated 3PL life-science logistics parks). Cold storage doors in these cleanroom environments must maintain strict Good Distribution Practice (GDP) validation, utilizing closed-cell PIR cores with zero VOC outgassing, magnetic interlock mechanisms, and flush hygienic frames that integrate directly into automated BMS monitoring.
Supermarket distribution centers, food-service walk-in boxes, and suburban dark stores situated along the M0 ring (Dunaharaszti, Inpark Páty, CTPark Ecser) experience rapid opening frequencies. Here, manual hinged swing doors are optimized with heavy-duty self-closing spiral cam hinges, internal luminescent push-safety rods, and high-impact polyethylene kick plates to absorb roll-cage impacts.
Procurement teams and general contractors across Hungary are transitioning away from generic cold storage doors toward custom-engineered, certified entrance envelopes. This shift is driven by three macro-industry factors:
1. Strict EU Green Deal & Hungarian OTÉK Energy Efficiency Mandates: Under the European Union’s revised Energy Performance of Buildings Directive (EPBD) and Hungarian National Building Regulation (OTÉK 253/1997. Korm. rendelet), cold storage facilities face stringent limits on envelope energy losses. With electricity tariffs representing the primary operating cost of Hungarian cold storage operators, minimizing the overall heat transfer coefficient (U-value) is paramount. High-spec hinged cold doors with high-pressure pentane-blown polyisocyanurate (PIR) cores achieve thermal conductivity ratings as low as λ = 0.021 W/m·K, permitting a 100mm door to outperform older 150mm PUR or EPS doors while reducing deadweight loads on structural jambs.
2. Complete Elimination of Thermal Bridging (Hőhídmentes Kivitel): Traditional steel-cased cold doors often suffered from peripheral thermal bridging around the sub-frame and structural panel connections. Modern Hungarian specifications mandate extruded PVC or composite polyamide thermal-break sub-frames with integrated heating-wire conduits. By thermally decoupling the cold interior face from the external warehouse staging zone, internal frame temperatures remain consistently above the local dew point, eliminating floor icing hazards and reducing compressor cycle load.
3. Advanced Mechanical Ergonomics & Life-Safety Compliance: Under EU occupational safety standard EN 179 and cold room machinery standard EN 13241, personnel entrapment prevention is an inviolable legal requirement. Next-generation hinged freezer doors feature glow-in-the-dark, push-to-release safety emergency release handles on the leaf interior, allowing trapped operators to instantly punch through latches even if the exterior handle is secured by an industrial padlock.
Understanding the operational parameters of various cold storage door types ensures correct architectural specification for chiller vs. freezer room designs:
| Door System Typology | Operating Temp Range | Typical Insulation & Thickness | Calculated U-Value (W/m²·K) | Airtightness Class (EN 12426) | Recommended Hungarian Facility Deployment |
|---|---|---|---|---|---|
| Standard Chiller Hinged Door (Manual) | 0°C to +15°C | 75mm – 100mm Rigid PIR / PUR (42 kg/m³) | 0.28 – 0.22 | Class 4 (Hermetic) | Fruit & vegetable pack-houses (Kecskemét), supermarket backroom storage, beer cellars. |
| Heavy-Duty Freezer Hinged Door (Heated) | -18°C to -30°C | 120mm – 150mm High-Index PIR Foam | 0.17 – 0.14 | Class 4 (Hermetic) | Frozen bakery hubs, industrial cold stores, meat distribution logistics (Szeged, Győr). |
| Ultra-Low Deep Freeze Hinged Door | -35°C to -60°C | 150mm – 200mm Structural Composite PIR | 0.13 – 0.10 | Class 4 (Heated dual-gasket) | Biomedical research facilities, plasma freezers, cryogenic industrial processing plants. |
| Heavy Stainless Sliding Cold Room Door | -25°C to +10°C | 100mm – 150mm PU/PIR Sandwich Panel | 0.22 – 0.15 | Class 3 – 4 | Main forklift logistics traffic corridors, central distribution dock receiving areas. |
| Fast-Acting Self-Repair Cold Storage Door | -30°C to +5°C | Dual-layer insulated PVC + air curtain logic | 1.20 – 0.85 | Class 2 – 3 | High-throughput AGV transit portals, automated buffering airlocks in 3PL warehouses. |
As a specialized manufacturer with high-capacity continuous panel lines and automated door assembly facilities, we bridge the gap between factory-direct cost efficiency and rigorous European engineering requirements. When partnering with our production engineering team, Hungarian developers, refrigeration contractors (hűtőgépészek), and general builders receive:
We utilize high-pressure, zero-ODP, low-GWP pentane-blown polyisocyanurate (PIR) injection at 42–45 kg/m³ density, ensuring uniform cell structure without thermal voids or core de-lamination over decades of thermal cycling.
Equipped with reinforced composite or 304 stainless steel self-rising spiral cam hinges. The leaf lifts 8mm during opening to eliminate threshold gasket drag, dropping down securely upon closure to form a gas-tight compression seal.
Full compliance testing per EN 13241, EN 1026 air permeability, and EN 12428 thermal transmittance. Comprehensive submittal packs, structural load calculations, and BIM CAD blocks expedite Hungarian building authority approval.
Doors are individually crated in sea/road-worthy ISPM-15 certified timber cases with reinforced edge-protection. Direct intermodal freight connections guarantee streamlined, damage-free delivery to construction sites anywhere in Hungary.
Addressing technical inquiries frequently raised by Hungarian project managers, HVAC-R consultants, and cold chain logistics specialists.
We incorporate a multi-stage thermal defense system: first, the door sub-frame features a structural polyamide/PVC thermal break that completely isolates the indoor temperature from the external ambient environment. Second, for freezer applications (below 0°C), our frames include integrated, self-regulating 230V PTC heating cable channels running within both the vertical jambs and the floor threshold. This precisely prevents perimeter condensation without overheating the gasket material or wasting electrical energy.
Under the National Fire Safety Code of Hungary (Országos Tűzvédelmi Szabályzat - OTSZ) and European Standard EN 13501-1, our high-index polyisocyanurate (PIR) cores are formulated to achieve B-s1, d0 flame retardancy. In the event of fire exposure, the PIR core forms a protective carbonaceous char layer that inhibits flame propagation, generates minimal smoke (s1), and produces zero burning droplets (d0), facilitating building inspector sign-off for Class-A logistics developments.
Yes. We supply custom counter-frames (ellenkeret) engineered to wrap around sandwich wall panels ranging from 60mm to 200mm in thickness. The aluminum or stainless steel counter-frame clamps the panel cut-out using thermal-break through-bolts, reinforcing the wall aperture without requiring additional structural steel trimmers, which significantly reduces on-site installation labor time in Hungarian facilities.
For meat packing plants and cheese aging rooms subject to aggressive clean-in-place (CIP) regimens, we specify AISI 304 or acid-proof AISI 316 stainless steel with a circular grain or 2B brushed finish. Alternatively, for standard food storage, we offer galvanized steel skins coated with 120-micron food-safe PVC Plastisol or antibacterial PVDF coatings that resist yellowing, mold formation, and standard disinfectant sprays.
Our self-lifting hinges feature internal helical ramp mechanisms manufactured from high-tensile composite POM resin or precision investment-cast stainless steel. As the door opens beyond 10 degrees, the hinge lifts the leaf by 8–10mm, preventing the bottom sweep gasket from dragging against the floor. This eliminates friction wear on the rubber seal, reduces the opening force required by operators, and ensures an automatic gravity-assisted return action.
Standard dimensional doors are fabricated within 2–3 weeks, while bespoke engineered systems (e.g., custom double-leaf openings, motorized systems, or cleanroom interlock variants) require approximately 3–4 weeks. We arrange complete road freight or intermodal container transport directly to your designated site or forwarder in Budapest, Győr, Debrecen, or elsewhere in Hungary, complete with full EUR-1 / ATR documentation, customs clearance papers, and comprehensive English/Hungarian installation manuals.
Whether you require standard walk-in freezer doors for food retail or specialized stainless-steel double hinged assemblies for a regional Hungarian cold-chain terminal, our technical sales engineers are prepared to supply tailored drawings, thermal calculations, and factory-direct pricing.
