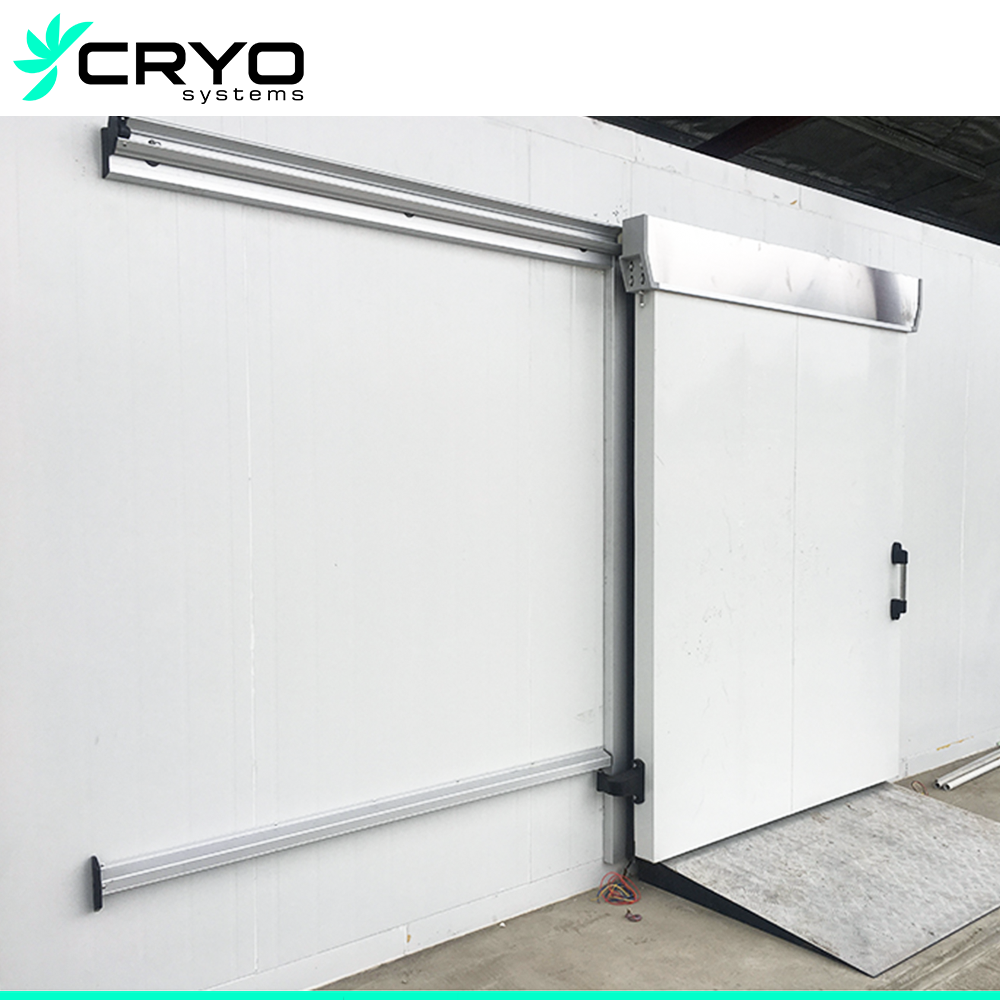

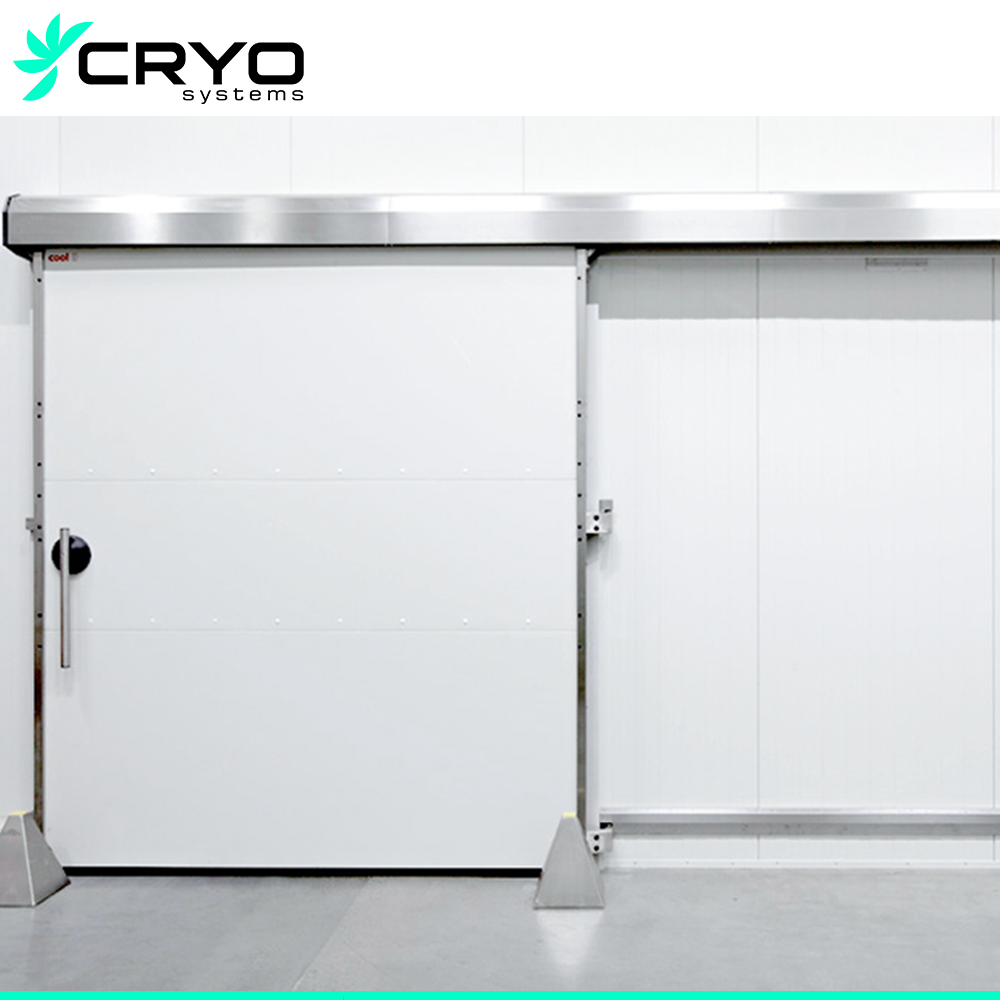

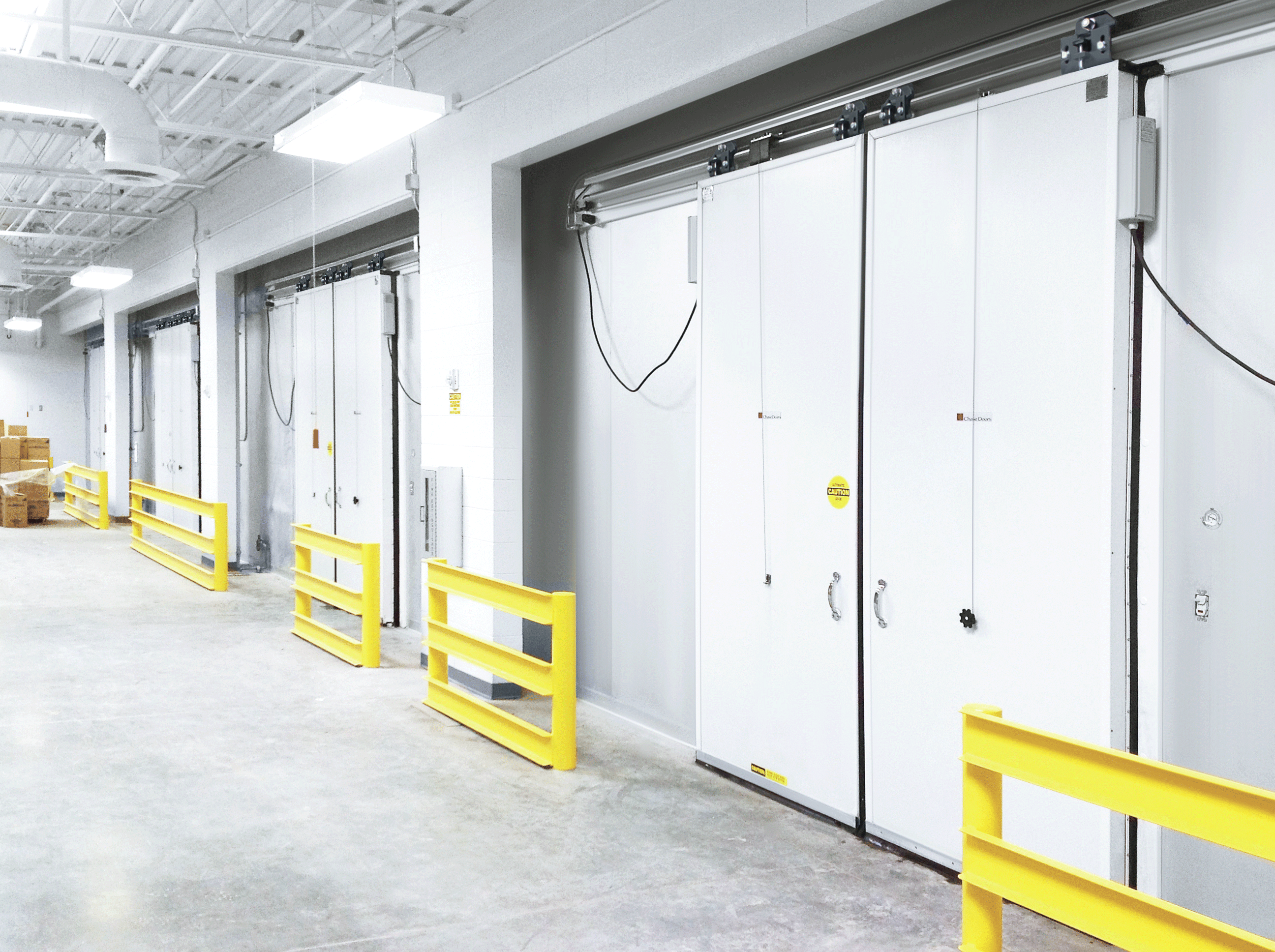

Products Description

1. Features

Sliding doors have reasonable material selection, simple structure, beautiful appearance, internal polyurethane integral hair, with good sealing and heat insulation; at the same time, they have safety devices in the warehouse, which are safe and practical; the characteristic is that the door is lighter.

2. Application

Cold storage, low temperature processing workshop, thermal insulation device, moderate door size, frequent opening.

Details & Specifications

1. Product Information

Applicable Temperature	-45°C ~ +50°C
Cold Room Door Material	100% polyurethane foaming material
Cold Room Door Density	42kg/m³
Panel Thickness (mm)	75, 100, 120, 150
Steel Plate Optional	Stainless steel, color steel plate, embossed aluminum plate
Door Type Optional	Manual sliding door and automatic sliding door
Door Height	1200 – 2800mm
Door Width	2000 – 3400mm

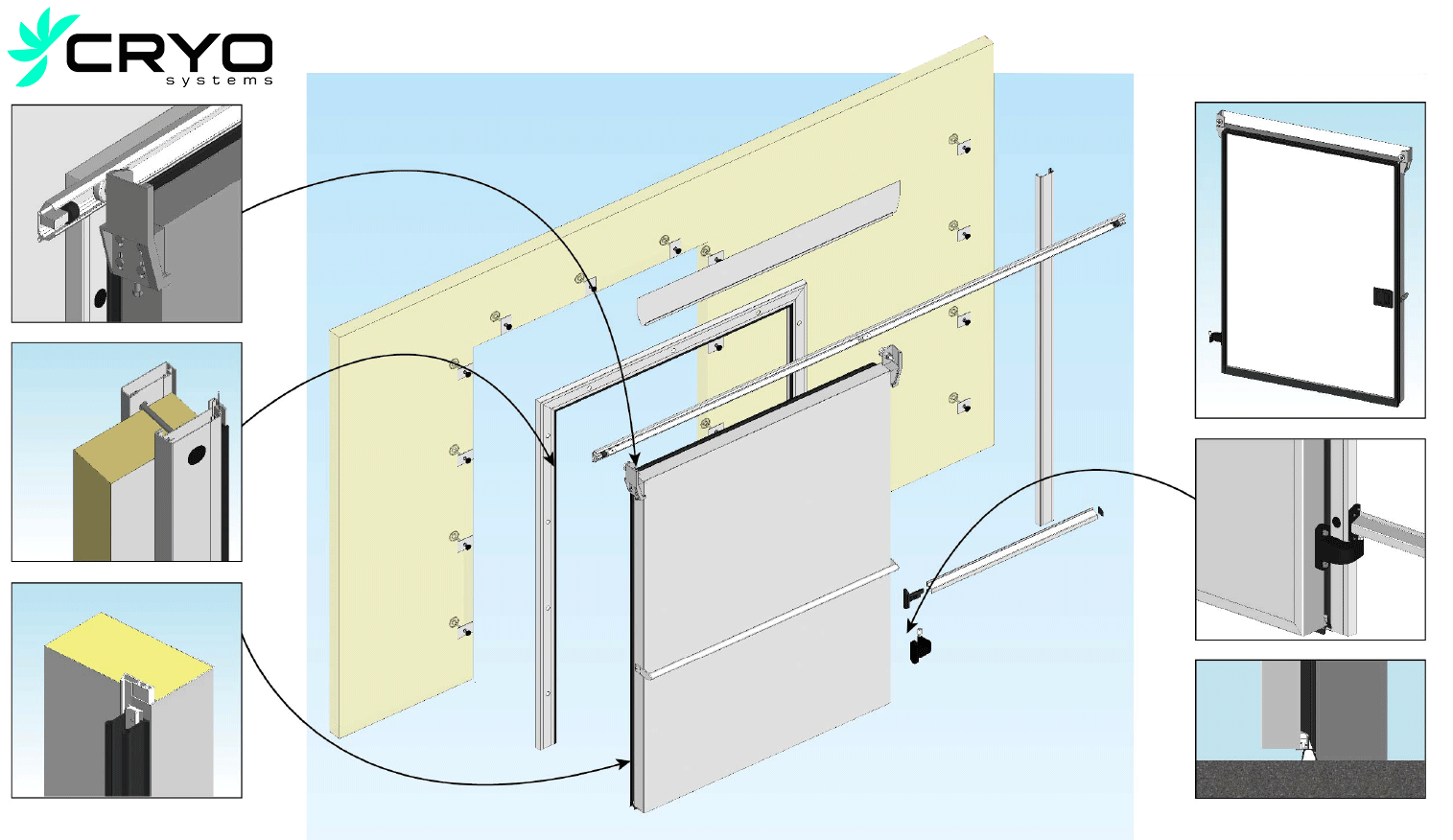

2. Components

(1) Door Seal: Made of EPDM, it has good chemical resistance, excellent durability and aging performance, wide temperature adaptability, and long-term working temperature is -50°C ~ +130°C.

(2) Door Panel: The door panel is made of polyurethane and the panel is integrally foamed, and the appearance is flat and the heat preservation performance is good.

(3) Door Frame: Strong Aluminum Frame Systems The door frame is made of aluminum alloy, which is neat and generous in appearance and durable. It overcomes the shortcomings of low strength and perishable wooden door frame. And equipped with self-limiting temperature electric heating belt, without temperature control or manual switching power supply.

(4) Guide Rail Device: Aluminum alloy guide rail, the guide wheel device and the pressing wheel device cooperate to make the door separate from the door frame.

(5) Drive and Electric Control (For Automatic Sliding Door): Integrated control of four drives, servo driver and high-resolution decoder; built-in 433MHZ remote control, 4.0 Bluetooth, IEEE802.11 wireless local area network; Airtight waterproof design, -10 degrees low-temperature heating function, +60 overheating protection function; Fast installation, saving wires and man-hours and reducing external interference.

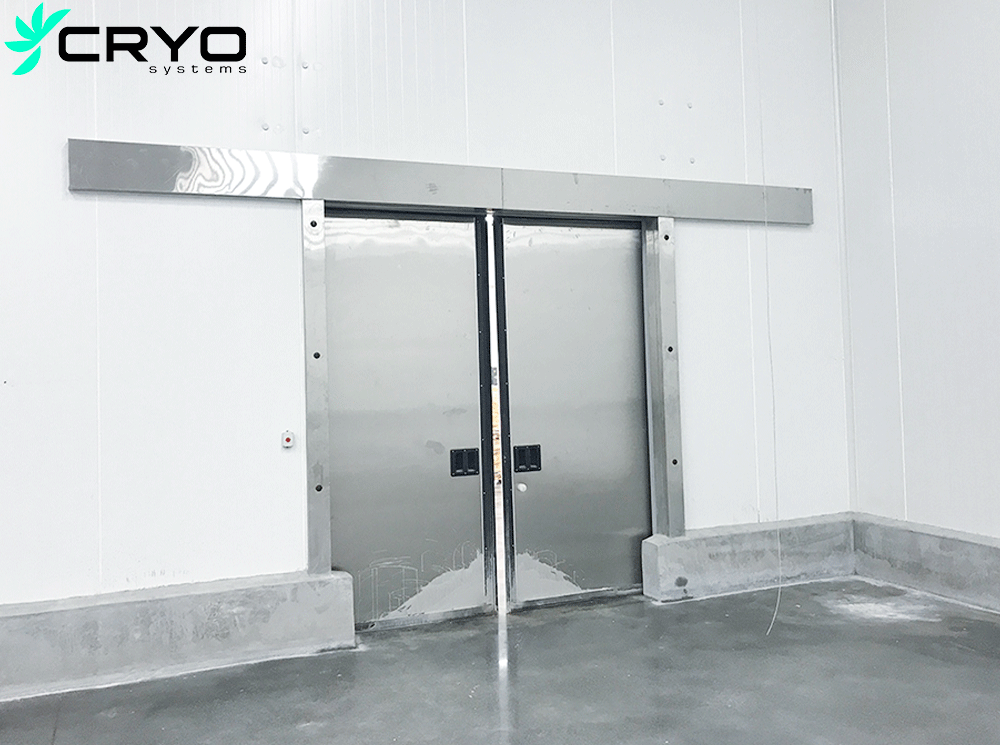

Manual Sliding Door

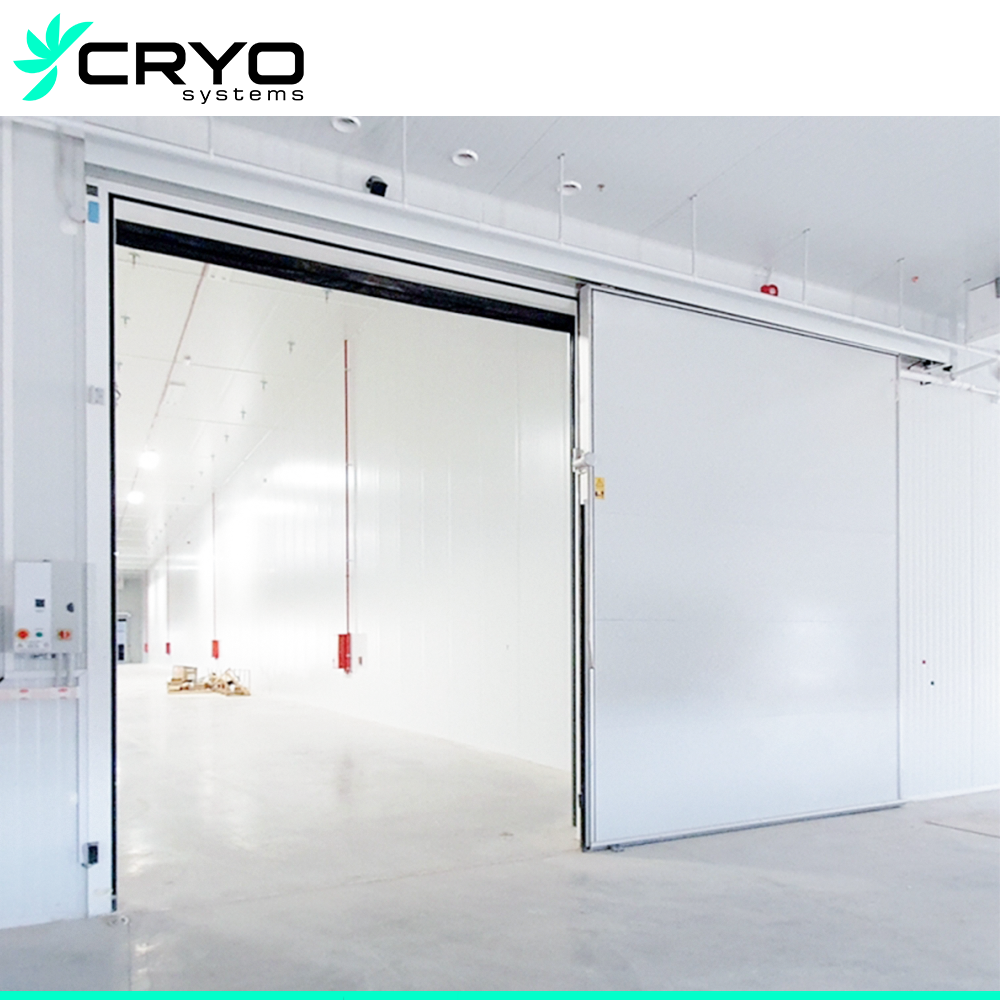

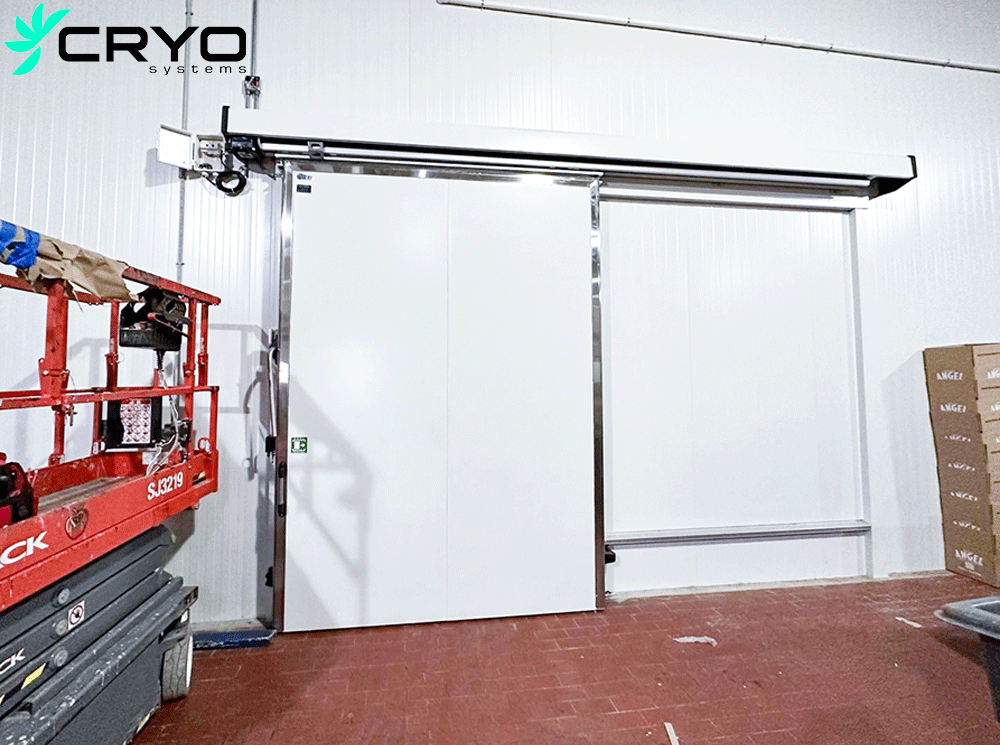

Automatic Sliding Door

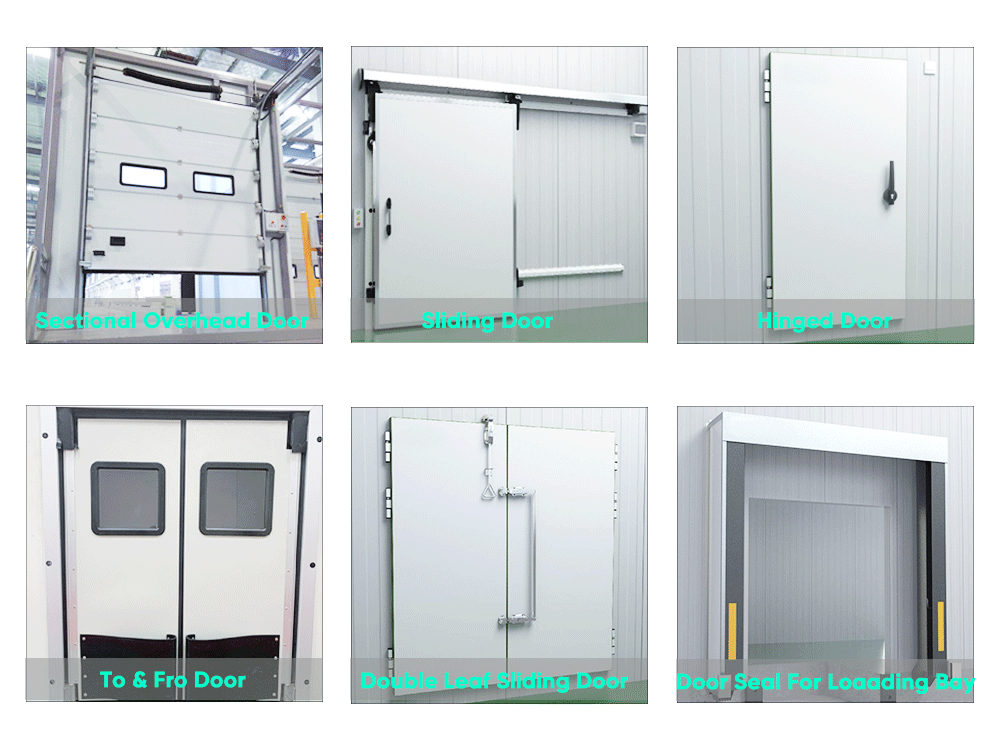

We have many kinds of cold room doors, more details please contact us!

Our Advantages

3. Customized Service

4. Why Choose Us

Customer Benefits

2/8 Theorem

80% considers the needs of customers

20% considers the future for customers (Flexibility for Expansion / Easy maintenance...)

10-Years Worry-Free Plan

10-Year Maintenance Guarantee

Comprehensive Technical Support

Parts Supply and Replacement

Project Cases

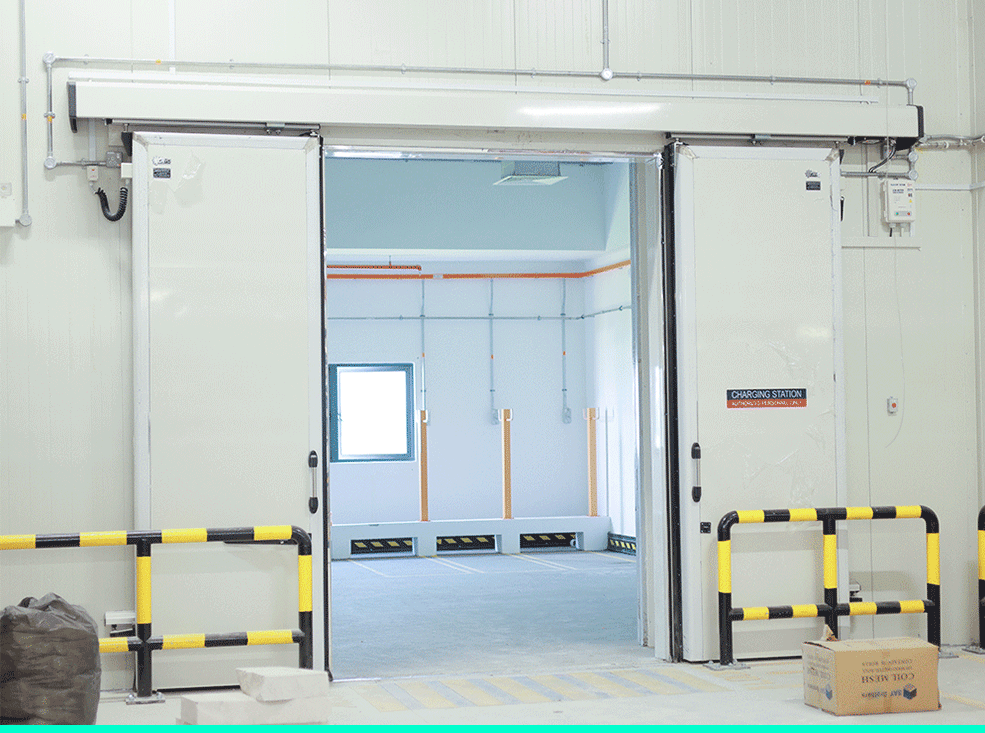

Project in Singapore

1. Singapore logistic cold storage project, for Fair Price

2. High quality motorized sliding doors, German TELEDOOR technology

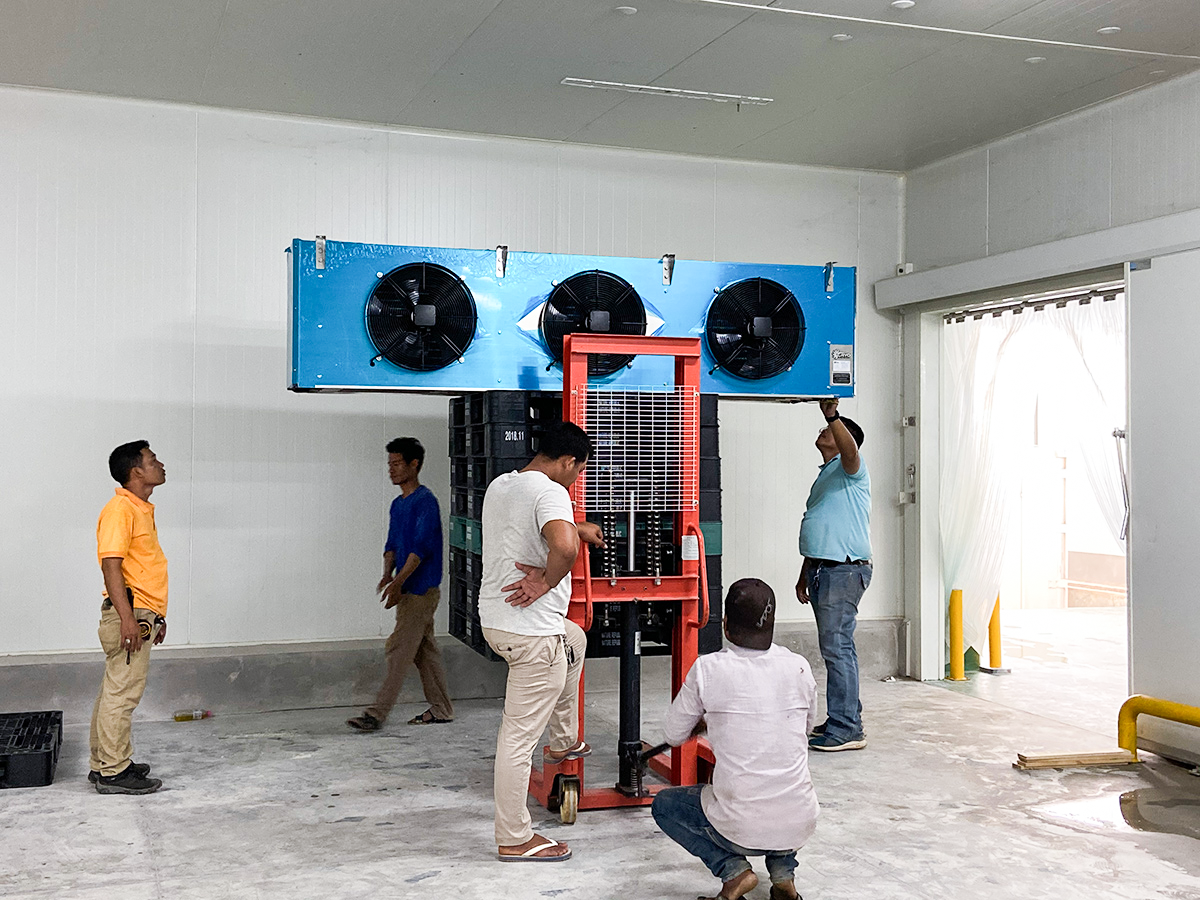

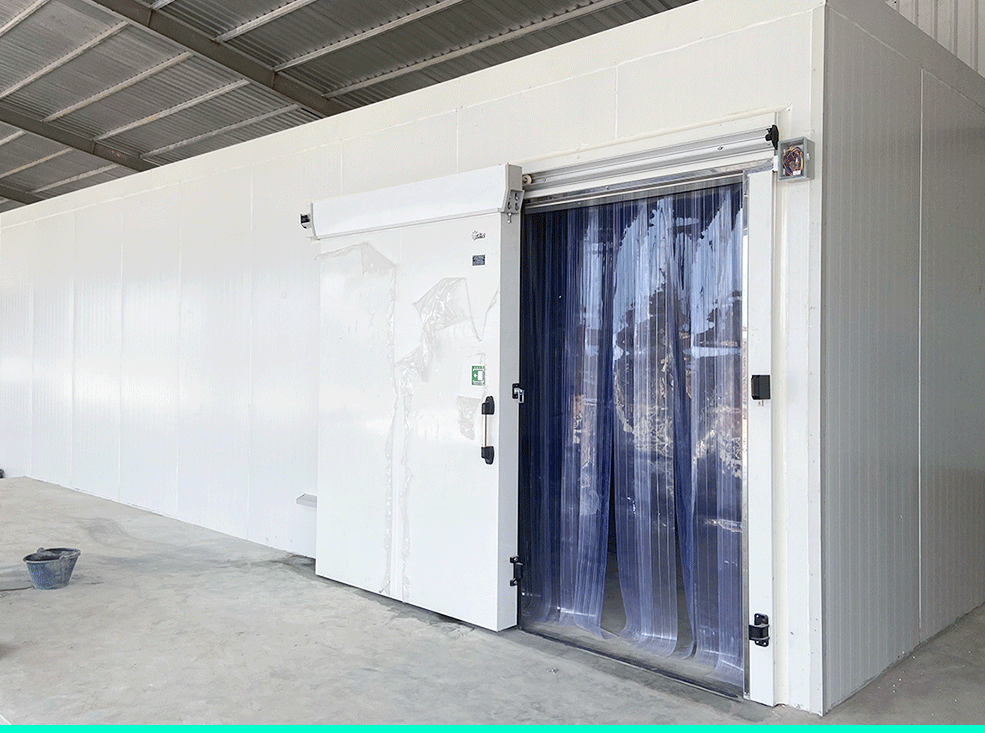

Project in Cambodia

1. Customized blast freezer measuring 12.7×5.15 meters, with a height of 5.35 meters, capable of providing a freezing capacity of 20 tons in just 22-24 hours.

2. With 1.8x2m sliding door

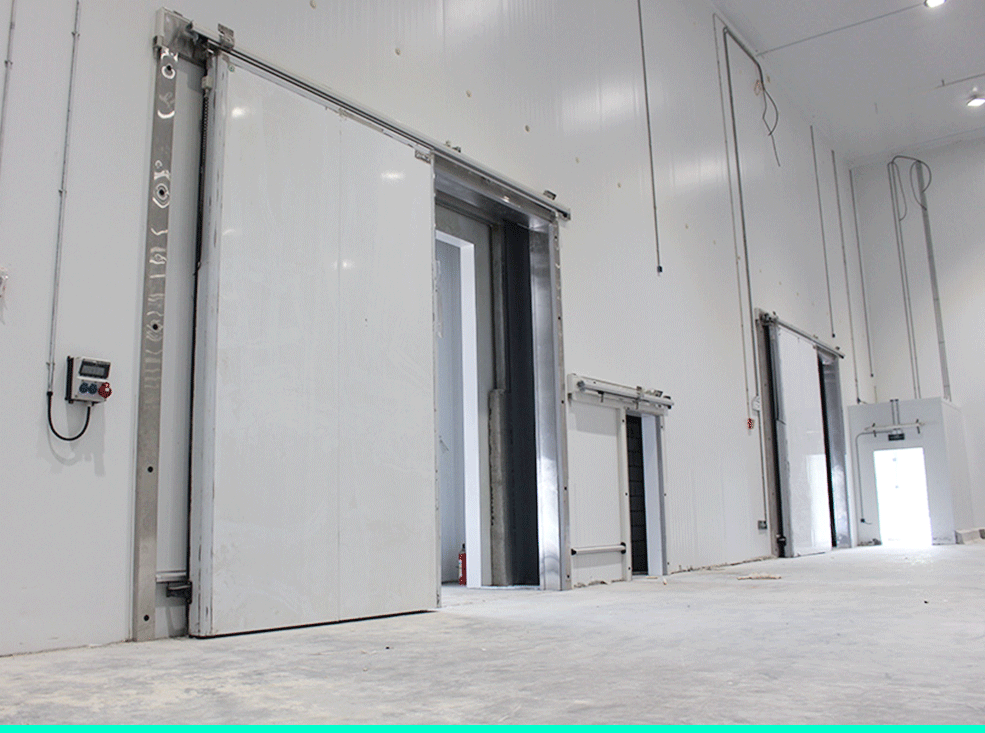

Project in USA

1. 4300㎡ 12m height logistics project, 150mm PIR panel

2. With 2.2x5m electric sliding doors. German technology.

Contact Us

Send your inquiry now!

Guangzhou Cryo Systems Refrigeration Equipment Co., Ltd.

Address: Room 305, Building 2, Xiehe Community, Dashi Street, Panyu, Guangzhou, Guangdong.

Frequently Asked Questions (FAQ)

1. What is the applicable temperature range for these sliding cold room doors?

The sliding doors operate reliably within an ambient and cold storage temperature range of -45°C to +50°C, and the EPDM seals are adapted for long-term working conditions between -50°C and +130°C.

2. What door panel thicknesses and facing materials are available?

Panel thicknesses include 75mm, 100mm, 120mm, and 150mm with 100% polyurethane integral foaming (42kg/m³ density). Surface steel plates can be customized with stainless steel, color steel plate, or embossed aluminum plate.

3. What are the key features of the automatic sliding door electrical system?

Automatic models integrate four-drive servo control with high-resolution decoders, built-in 433MHz remote control, Bluetooth 4.0, and IEEE802.11 WLAN. They also include airtight waterproofing, a -10°C low-temperature heating function, and +60°C overheating protection.

4. How is door freezing and condensation prevented on the frame?

The durable aluminum alloy door frame is integrated with a self-limiting temperature electric heating belt, preventing frost and condensation automatically without requiring manual power switching or temperature adjustment.

5. Can the sliding door dimensions be tailored to specific projects?

Yes, standard dimensions range from 1200mm to 2800mm in height and 2000mm to 3400mm in width, with customized engineering available for oversized logistics warehouses and blast freezers.

6. What warranty and customer service plans are provided?

Under the 10-Years Worry-Free Plan, customers receive a 10-year maintenance guarantee, comprehensive technical support, and continuous spare parts supply and replacement.

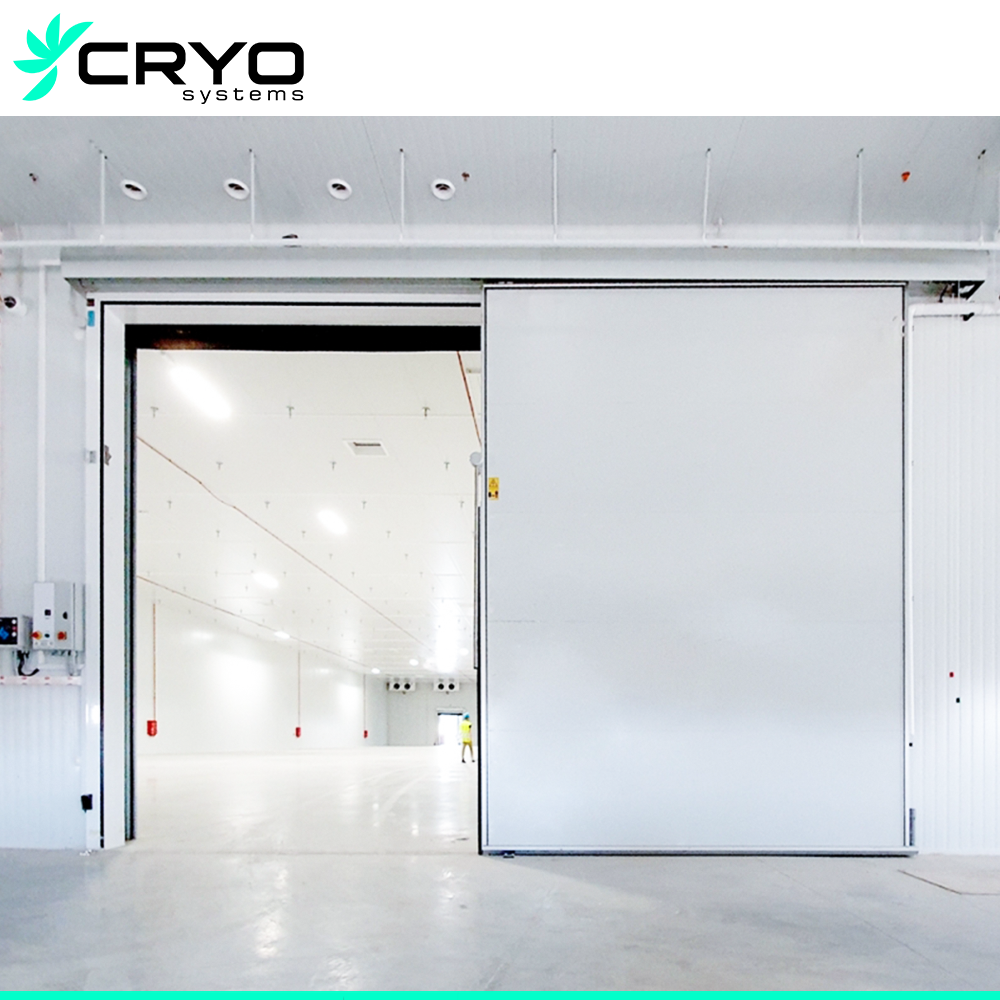

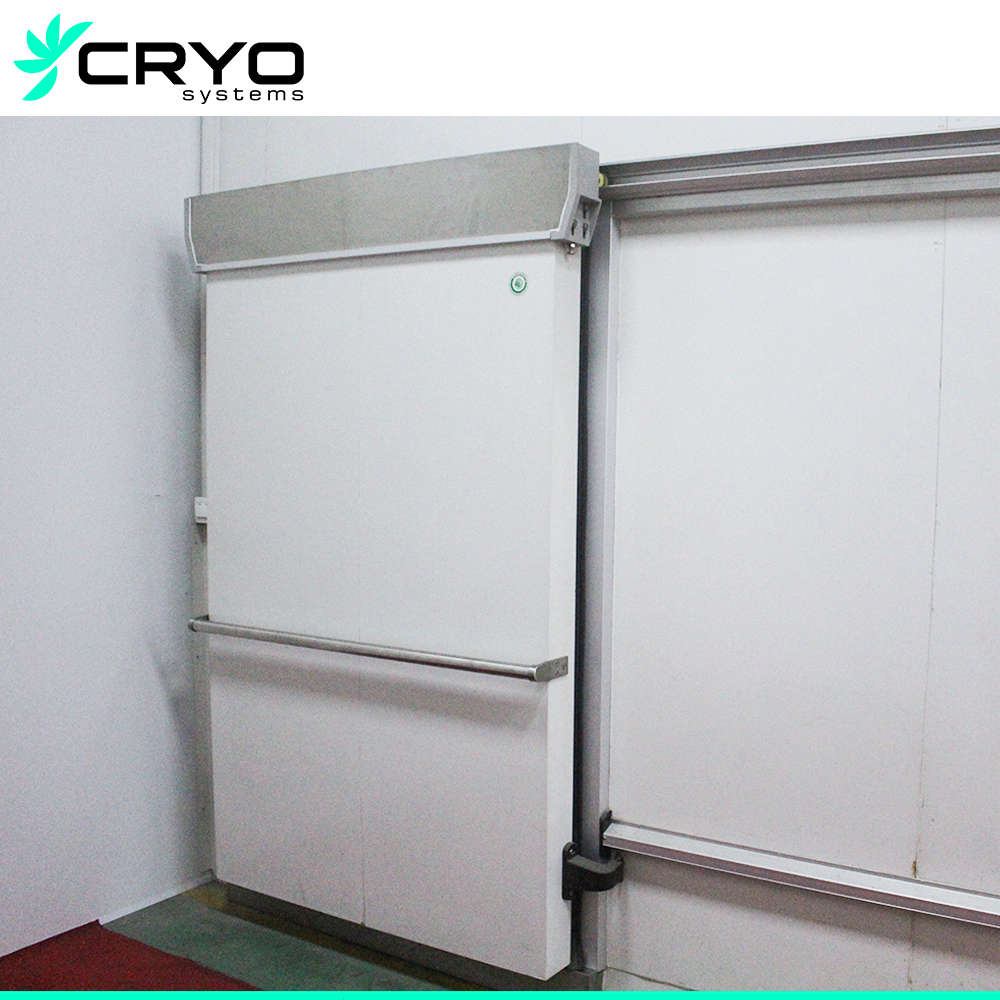

Insulated Doors Cold Room Sliding Door Cold Storage Door
