Directly integrated systems conforming to ASTM, EN, and regional Civil Defence building parameters. Explore our performance-tested architectural and industrial product lineup below.
Precision cold-rolled austenitic and ferritic roof flashings designed for superior high-temperature stack sealing, zero chemical creep, and complete watershed seal integrity on pitched industrial roofing assemblies.
Ultra-low thermal conductivity closed-cell polyisocyanurate (PIR) cores featuring integrated cam-lock jointing systems engineered for cold chain logistics, pharmaceutical warehouses, and sub-zero storage chambers.
High-tensile aluminum alloy sheets treated with fluorocarbon (PVDF) and architectural powder coatings, offering elevated corrosion protection in saline coastal zones combined with high solar reflectance index (SRI).
Comprehensive cold-formed galvanized and Alu-Zinc trim portfolio. Precisely fabricated corner trims, valley gutters, and ridge cappings guarantee building envelope thermal continuity and absolute air-water barriers.
Heavy-duty motorized thermal break barrier doors clad in anti-corrosive stainless steel with high-density polyurethane injected insulation, integrated defrost systems, and impact-resistant edge protection tracks.

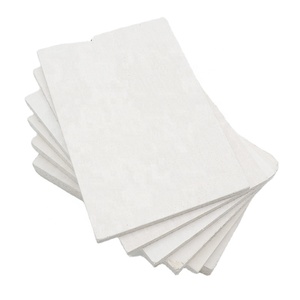

Next-generation non-combustible composite cladding system combining structural magnesium sulphate board technology with high-load acoustic dampening, zero flame spread rating, and anti-delamination characteristics.
Compliant with stringent international food processing sanitation hygiene parameters, featuring high core-to-skin adhesion, fire-retardant formulation (B1/PIR), and pre-finished anti-bacterial coated steel exterior skins.

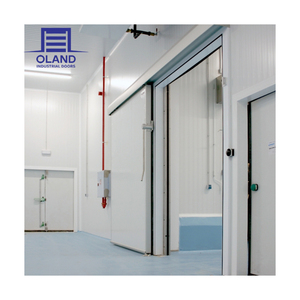

Industrial sliding door assemblies featuring dual rubber perimeter gaskets, internal safety release mechanics, precision CNC-formed cold-rolled suspension tracks, and optimal barrier against thermal transfer losses.
Procurement efficiency hinges on accurately balancing span load capabilities, U-value thermal retention, and international fire-retardancy standards.
| Profile / Panel Type | Structural Substrate | Core Density / λ-Value | Fire Classification | Span Capacity (mm) | Primary Industrial Application |
|---|---|---|---|---|---|
| PIR Continuous Roof Panels | 0.50 – 0.70 mm Pre-painted GI / Aluzinc | 40-42 kg/m³ | 0.020 W/m·K | Class B-s1, d0 / ASTM E84 Class A | Up to 3,800 mm | Logistics hubs, automated distribution centers, hypermarkets |
| PUR High-Rigidity Wall Cladding | 0.45 – 0.60 mm Color Coated Steel | 38-40 kg/m³ | 0.024 W/m·K | DIN 4102 B2 Rated | Up to 3,200 mm | Industrial warehouses, modular manufacturing, cleanrooms |
| Structural Rockwool Fire-Panels | 0.60 – 0.80 mm Heavy Gauge Zinc | 100-120 kg/m³ | 0.038 W/m·K | Class A1 Non-Combustible (4 Hours) | Up to 4,500 mm | Oil & gas storage, power plants, hazardous goods storage |
| Cold Storage Injected Panels | 0.60 mm Food-Grade Antibacterial Plastisol | 42-45 kg/m³ | 0.019 W/m·K | Self-extinguishing PIR Formulation | Up to 6,000 mm (Vertical) | Sub-zero freezers (-40°C), agricultural blast cooling facilities |
| Galvanized Composite Decking Sheets | 0.80 – 1.20 mm High-Tensile G350/G550 | Cold-Rolled Monolithic Profile | Inherently Non-combustible | Up to 4,200 mm (Unpropped) | Multi-story commercial steel frames, composite concrete slab decks |
Information Gain Insight: Selecting between trapezoidal roof profile sheets and continuous sandwich panels requires a life-cycle assessment (LCA) of cooling load dynamics. In regions like the Arabian Gulf and equatorial Africa, solar heat radiation accounts for over 68% of building heat gain. Replacing single-skin profile sheets with 80mm PIR continuous panels drops HVAC power consumption by upwards of 34% annually, yielding an amortized capital investment recoup within 3.2 operational years.
Furthermore, structural purlin spacing calculations must incorporate dead loads versus wind suction coefficients. Our engineers calibrate sheet wave depths (from 32mm to 45mm trapezoidal crest heights) against local wind pressures to avoid mechanical fatigue around fastener washers.
Key market transitions anticipated between 2026 and 2030 across international building codes and industrial metallurgy.
International developers are strictly enforcing Scope 3 emissions reduction targets. Future tenders specify Electric Arc Furnace (EAF) profile sheets manufactured with scrap metal and renewable hydrogen energy, drastically cutting embodied carbon compared to traditional blast furnace routes.
Standard hot-dip galvanization is being outpaced by ZAM coatings (1-3% Magnesium alloy addition). These profiles display self-healing corrosion resistance along sheared edges, providing up to four times the lifespan of standard GI in heavy-salinity coastal industrial zones.
Mitigating the urban heat island effect has triggered municipal mandates requiring roofing materials to demonstrate a Solar Reflectance Index (SRI) of ≥ 78. Advanced polyester and PVDF finishes reflect infrared radiation without compromising color integrity.
Precision cold-forming lines now link directly via API to Building Information Modeling (BIM) platforms. Panels are engineered with individualized laser-cut profiles, factory pre-notched laps, and QR-coded serialization for rapid on-site erection.
Roof profiles are manufactured with standing-seam rib shapes engineered to carry solar clamp mounting assemblies without requiring fastener roof penetrations, eliminating potential thermal leaks and water ingress pathways.
Tighter life-safety fire regulations have triggered formulations of PIR and composite board cores with non-halogenated organic blowing agents, minimizing toxic smoke density during elevated-temperature exposure.
Operating advanced roll-forming machinery and automated continuous polyurethane/polyisocyanurate production facilities in Muscat, Oman, Emaar Industries provides an integrated building envelope ecosystem tailored for industrial EPC contractors and structural consultants.
Procurement teams can consult directly with our application engineers for load span calculations, deflection criteria reviews, and customized bill-of-quantities (BOQ) optimizations.
Answers to key considerations encountered by project specifiers, commercial contractors, and international import agents.
Our standard cold-rolled profile sheets utilize high-tensile structural steel ranging from Grade 250 to Grade 550 MPa. Hot-dip galvanization is maintained at Z120 to Z275 g/m² coatings, or Aluzinc (AZ150 g/m²), offering multi-decade barrier and galvanic protection against severe atmospheric corrosion.
Polyisocyanurate (PIR) cores offer exceptional thermal resistance (approx. 0.020 W/m·K), reducing necessary panel thickness and structural dead load on primary steel frames. Rockwool provides non-combustible Class A fire performance with acoustic insulation, making it the preferred choice for fire separation walls and plant enclosures.
While our continuous production lines can manufacture single profiles up to 18 meters, export packaging for standard 40ft High Cube containers caps length at 11.8 meters to avoid handling damage. For regional GCC projects served via overland road trailers, continuous spans up to 14 meters are delivered directly.
We supply custom-formed stainless steel pitch roof flashings and continuous EPDM thermal breaks. Coupled with precision-matched valley and apron flashing elements, our systems seal irregular penetration perimeters against air, vapor, and water infiltration.
Yes. We supply an extensive range of international RAL standard finishes including RAL 9002 (Grey White), RAL 9010 (Pure White), RAL 5012 (Light Blue), and custom PVDF, SMP, or high-durability Plastisol formulations calibrated to project specifications.
Every export dispatch includes comprehensive Mill Test Certificates (MTC 3.1) stating chemical composition and yield tensile tests, Certificate of Origin (COO), commercial packing lists, batch core flammability reports, and SGS or Intertek third-party inspection sign-offs upon request.
Share your purlin layouts, architectural drawings, or technical specifications with our engineering desk for fast pricing, static calculations, and sample panels.
