Direct-to-site structural profiles, industrial cold room systems, high-gauge decking, and architectural flashing systems engineered to Australian building regulations and global standards.

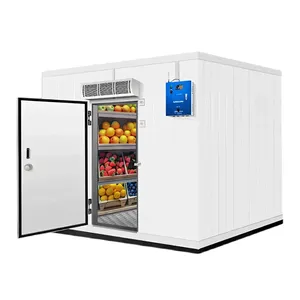

High-efficiency walk-in chiller and freezer enclosures with interlocking cam-lock joinery for seafood, fruit, and temperature-controlled logistics across Victorian distribution centres.

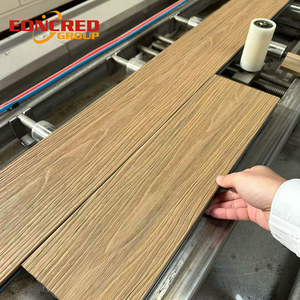

UV-stabilised heavy-duty composite panels engineered for harsh outdoor environments, commercial facades, boardwalks, and perimeter industrial acoustic screening.

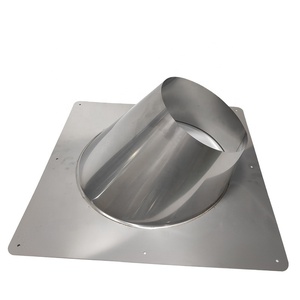

Corrosion-resistant custom-bent stainless penetrations, aprons, and pipe abutments designed to maintain air-tight and water-tight seals on steeply pitched roofs.

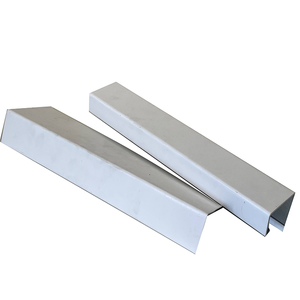

Heavy-gauge architectural drip edges engineered to arrest capillary action, prevent moisture egress behind facade cladding, and protect structural parapets.

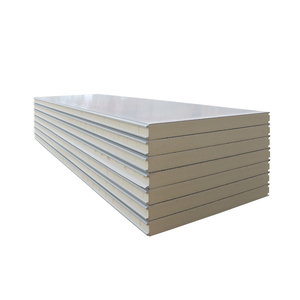

Continuous-line polyurethane and polyisocyanurate insulated structural wall and ceiling panels offering thermal ratings up to R-8.5 for Victorian logistics hubs.

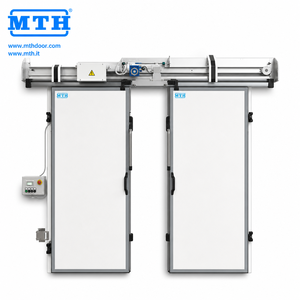

Industrial airtight motorized sliding cold room entries with integrated perimeter heating elements to prevent ice adhesion during continuous blast-freezing operations.
Heavy-duty optical safety signaling equipment designed for industrial logistics yards, material handling gantry cranes, and automated warehouse vehicles.
High-yield trapezoidal metal decking profiles serving as permanent tensile steel reinforcement and shuttering for multi-storey mezzanine and commercial floor slabs.
A rigorous review of cold-rolled profile geometry, tensile metallurgy, load span capacity, and compliance with the National Construction Code (NCC 2022) for commercial infrastructure in Melbourne.
Our cold-rolled profiles are manufactured from structural-grade coil steel complying strictly with AS 1397 and ASTM A653/A792. Base metal thicknesses (BMT) range from 0.42mm to 1.20mm for profile cladding, and up to 3.0mm for cold-formed Z/C purlins. We deploy high-tensile G550 steel (minimum yield strength 550 MPa) to maximize rib span distance while minimizing dead load, alongside ductile G300 grade for complex roll-formed flashings and curved architectural radii.
Atmospheric exposure across Port Phillip Bay requires stringent barrier protection. Profiling coils feature hot-dip metallic alloy coatings consisting of 55% Aluminium, 43.5% Zinc, and 1.5% Silicon (Aluzinc/Galvalume AZ150 to AZ200), or heavy hot-dip Galvanized Zinc (Z275 to Z450). Pre-painted surfaces undergo continuous coil-coating with high-durability Super Polyester or Polyvinylidene Fluoride (PVDF/Kynar 500) systems compliant with AS/NZS 2728 Category 3 to 5, preventing chalking under Victoria's extreme seasonal UV indexes.
Profiles incorporate deep crest geometry (28mm to 35mm rib height) with intermediate stiffeners along the wide pan. This geometry provides high second moments of area (Ixx), permitting purlin spans beyond 1,800mm under cyclic Victorian wind conditions (AS 4040.2). Our proprietary anti-capillary side-lap grooves isolate internal capillary voids, completely preventing driven moisture ingress during heavy south-westerly squalls even at shallow roof pitches down to 2 degrees (1 in 30 slope).
| Profile Designation | Yield Strength | Standard BMT (mm) | Coating Class | Max Uncut Length | Recommended Pitch |
|---|---|---|---|---|---|
| Trapezoidal Box Rib (T-35) | G550 MPa | 0.48 / 0.60 / 0.75 | AZ150 / AZ200 / Z275 | 14.8 Metres (Container Max) | 2° (1:30) with lap sealant |
| Industrial Corrugated (C-18) | G550 / G300 | 0.42 / 0.48 / 0.60 | Z275 / AZ150 | 11.8 Metres | 5° (1:12) minimum |
| Composite Mezzanine Deck (D-75) | G450 MPa | 0.75 / 0.90 / 1.00 | Z275 Galvanized | 12.0 Metres | Flat structural deck |
| Structural Purlins (Z & C) | G450 / G500 | 1.20 to 3.00 | Z350 / Z450 Heavy Zinc | Custom site lengths | Structural substructure |
| PIR Core Insulated Roof Panel | G300 (Skin) | 50mm to 150mm Core | Class 3/4 AS 2728 Paint | 13.5 Metres | 3° minimum pitch |
Meeting the structural, acoustic, and thermal envelope demands across Victoria's prime logistics corridors, coastal industrial docks, and intensive agriculture zones.
Melbourne’s western expansion requires expansive distribution hubs with column-free clear spans. Our G550 high-tensile cold-rolled profiles and structural composite floor decking (D-75) streamline mezzanine construction and enable rapid envelope enclosure. High load-to-weight ratios minimize dead load on long-span portal frames, driving major reductions in structural steel tonnage for prime logistics estates.
Facilities adjacent to Fishermans Bend, Port Melbourne, and the shoreline of Port Phillip Bay operate under ISO 9223 Category C3 and C4 airborne salinity. Standard cold-rolled sheets deteriorate prematurely in these salt-laden winds. We supply marine-grade AZ200 and specialized polyurethane thick-film coated profile sheets tested for 2,000+ hours of continuous salt spray resistance, keeping coastal terminals operational for decades.
From meat processing to pharmaceutical storage, Victoria’s cold chain depends on thermal reliability. We supply integrated envelopes pairing insulated PIR wall panels (yielding thermal conductivity as low as 0.022 W/m·K) with continuous tongue-and-groove cam-lock joints, eliminating thermal bridging in compliance with Section J energy efficiency standards of the National Construction Code (NCC 2022).
How our profile sheeting addresses Melbourne’s infamous "four seasons in one day" meteorological cycles, thermal shock delamination, and building code updates.
Melbourne experiences rapid temperature drops of over 15°C within minutes when southerly changes cross the city. Darker profile roof sheets absorb significant heat during summer afternoons, reaching temperatures above 70°C, followed by abrupt contraction. Our roll-formed sheet designs incorporate engineered slotted fastening patterns and expansion steps that accommodate longitudinal dimensional movements without shearing fasteners or elongating screw holes.
Spring and summer storms across Melbourne often deliver high-velocity hail that dents lower-grade imported cladding. By utilizing high yield strength G550 steel substrates, our trapezoidal profile sheets offer superior indent recovery and surface tension compared to standard mild steels. The specialized primer coats resist micro-cracking at rib crests, preserving corrosion protection even under direct stone impact.
With revised energy targets under NCC 2022 Section J, industrial envelope performance requires total system U-value validation. When paired with our high-density PIR sandwich systems or composite decking, thermal breaks suppress condensation risks in Melbourne's chilly, damp winter climate. Anti-condensation fleece backing is also factory-applied to the underside of single-skin profile sheets, capturing condensation and releasing it safely via eaves ventilation.
Reduce structural supply chain costs by buying factory-direct. We provide cut-to-length profile sheets, pre-punched structural purlins, and insulated sandwich panel systems shipped directly to Port of Melbourne with full Mill Test Certificates (MTC 3.1).
Emaar Industries delivers high-capacity continuous production, advanced metallurgical traceability, and international freight reliability direct to Australian ports.
Our heavy-duty European continuous roll-forming lines operate around the clock, producing over 10,000 square metres of cold-rolled profiles and insulated composite panels every day. This high volume guarantees that major warehouse claddings, industrial re-roofing jobs, and logistics park contracts across Melbourne never experience site delays caused by manufacturing bottlenecks.
Every batch of cold-rolled coil undergoes comprehensive laboratory verification before and after forming. We audit mechanical yield strength, elongation, coating thickness, and paint adhesion (cross-hatch testing). Mill Test Certificates according to EN 10204 / 3.1 accompany every shipping container, ensuring fast consultant approvals from Victorian structural engineers and building certifiers.
We work directly with major international shipping lines servicing container berths at DP World and Patrick Terminals (East Swanson Dock). Profile bundles are protected with waterproof VCI plastic wrapping, corner edge protectors, and treated timber skids suitable for crane or forklift offloading, keeping material completely rust- and moisture-free during open sea transit.
Clear, direct technical answers addressing regulatory compliance, marine atmospheric ratings, logistics scheduling, and engineering certifications for Victorian developments.
Consult with our technical sales engineers to review framing spans, confirm wind load requirements, and receive competitive direct mill pricing for high-tensile cold-rolled profile sheets, insulated panels, and purlin framing systems.
Our sales engineers respond to project questions during working hours (GST+4).
