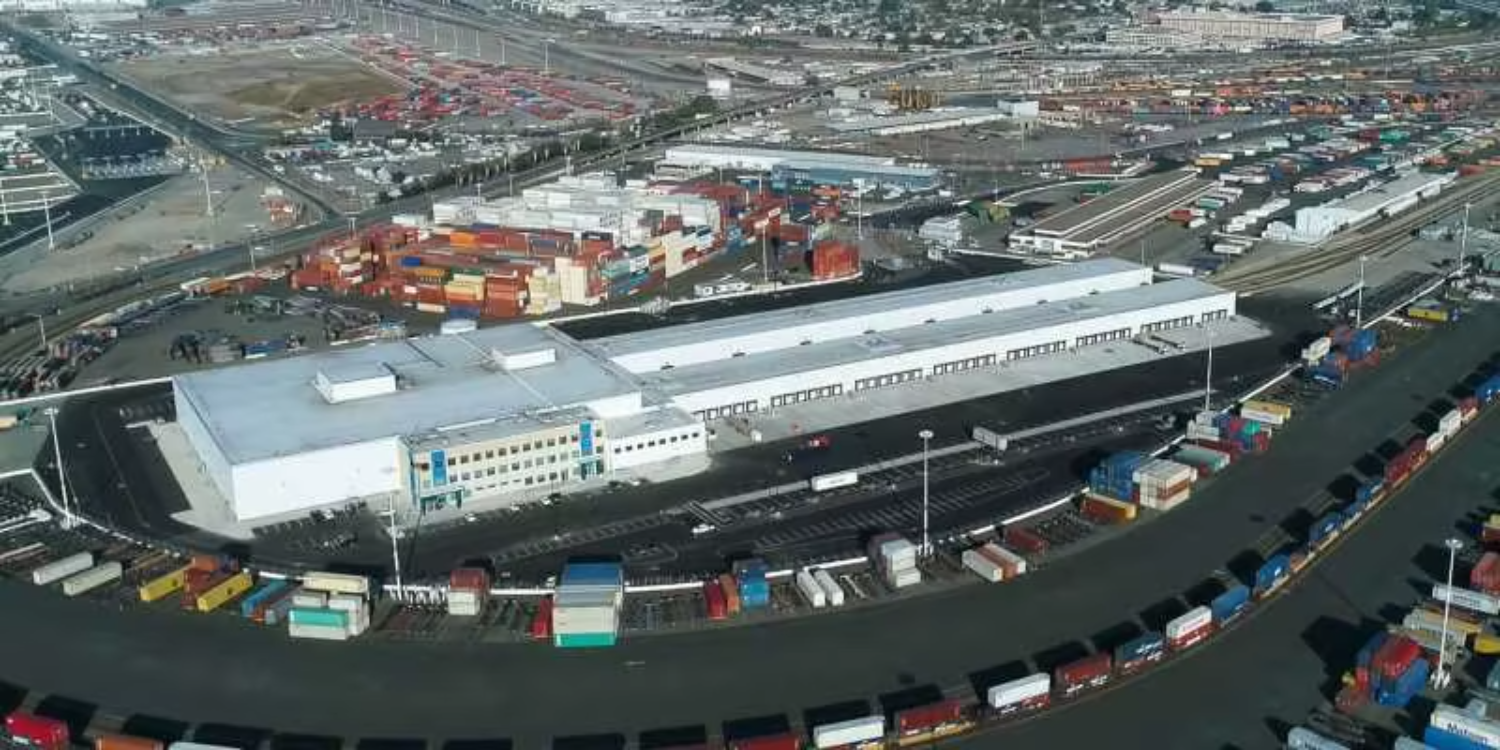

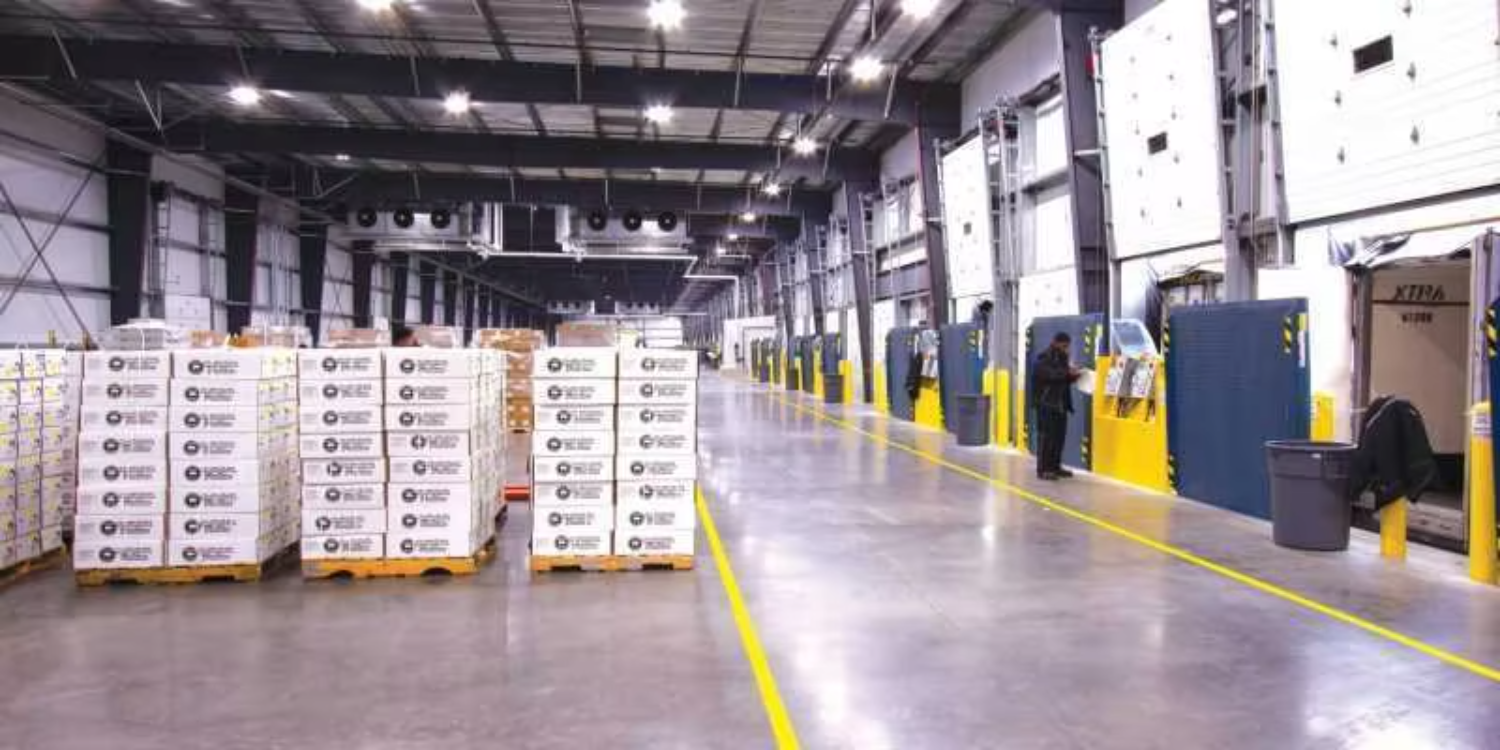

Designed for frozen and chilled storage applications with temperature control from -40°C to +15°C. The system supports stable storage conditions for food logistics, meat, seafood, fruits and other temperature-sensitive products.
PU/PIR insulated sandwich panels reduce heat transfer and maintain stable indoor temperatures. Different panel thicknesses and insulation configurations are available according to climate conditions and storage requirements.

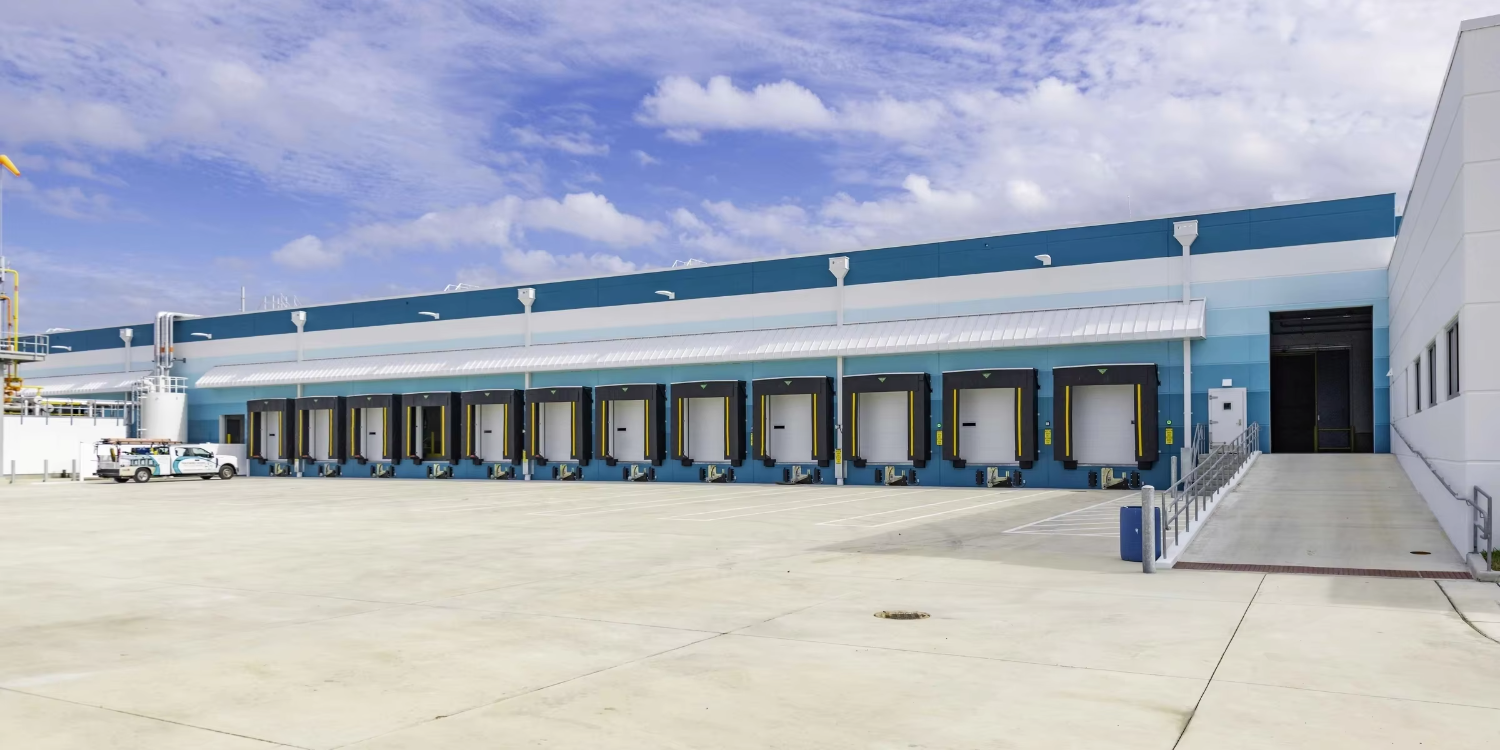

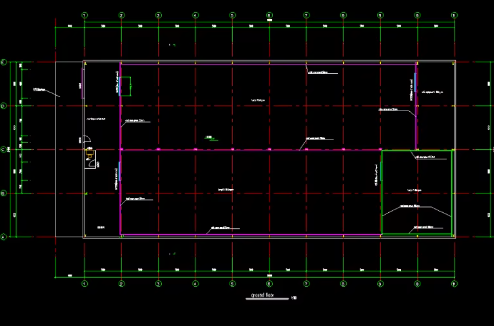

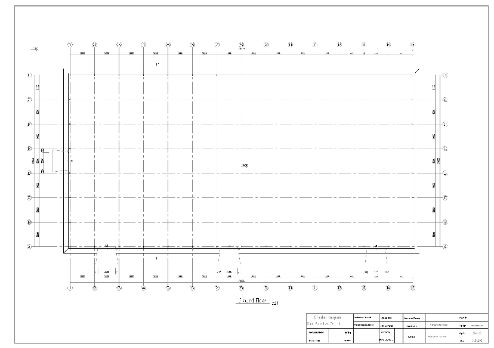

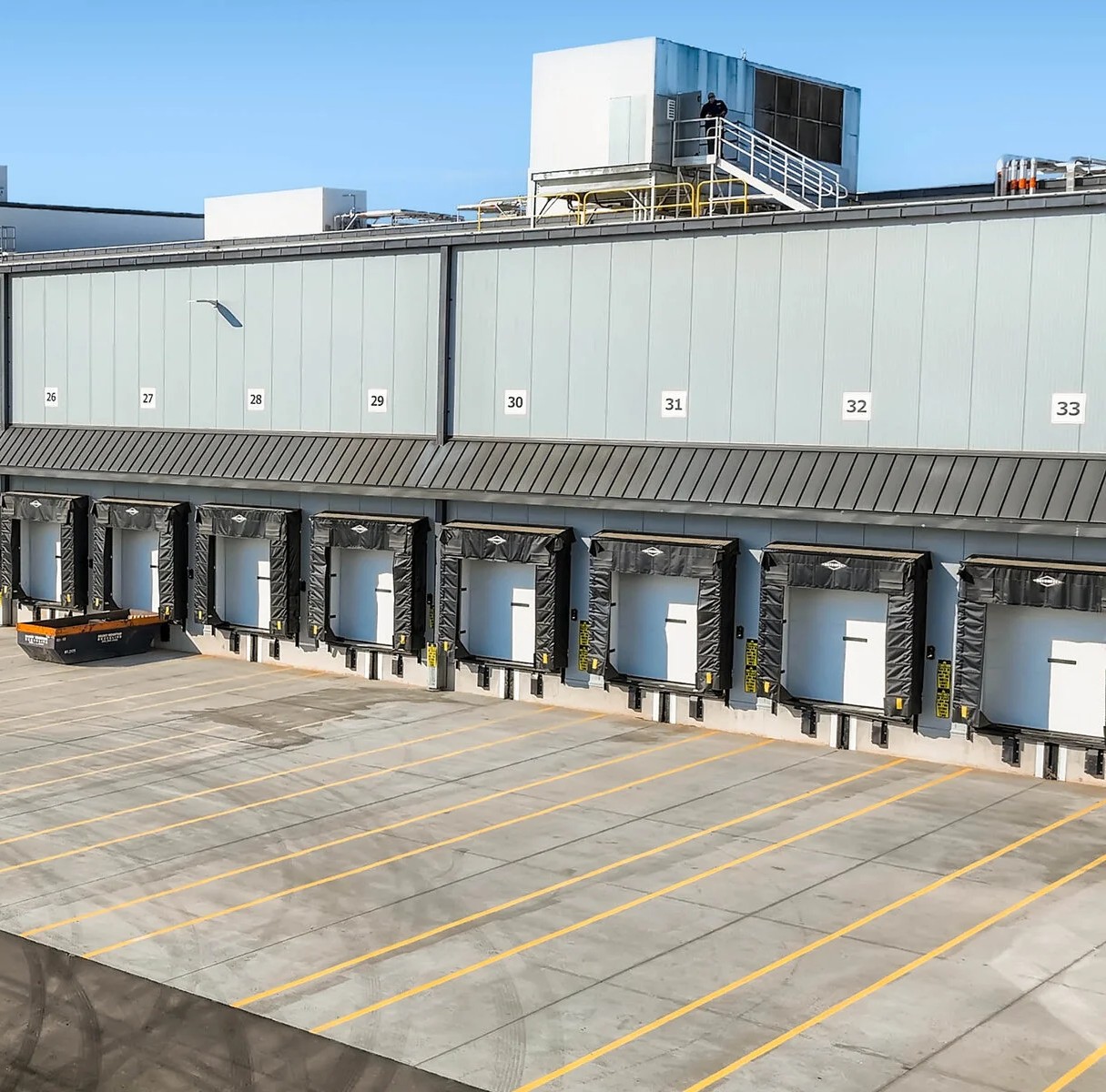

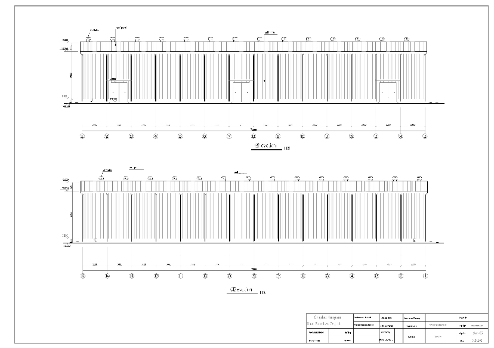

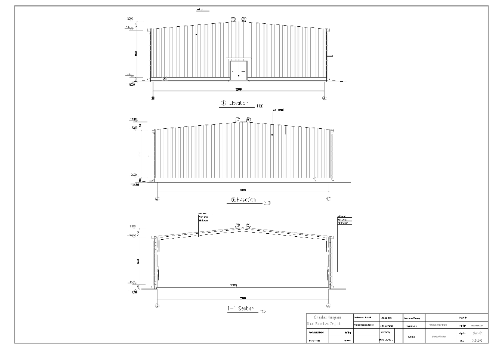

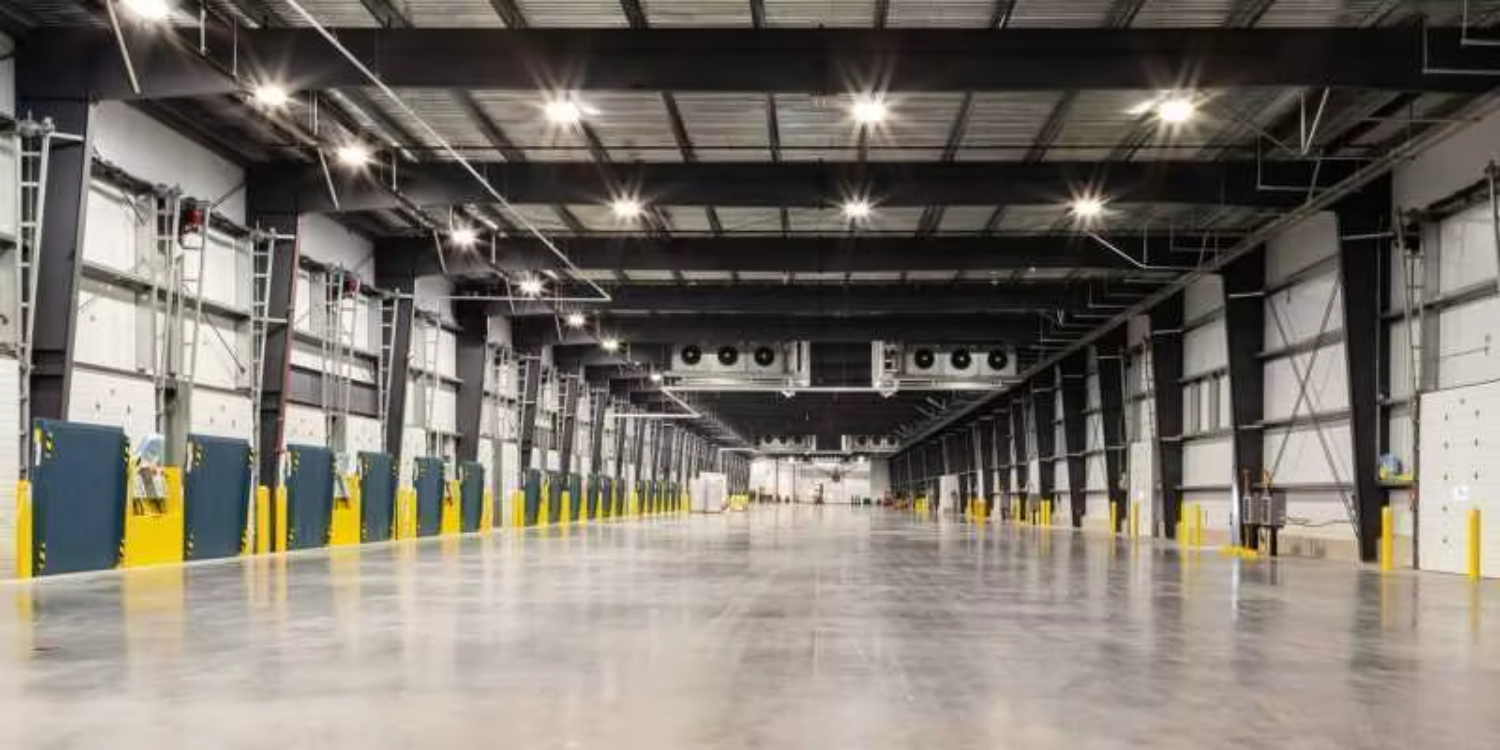

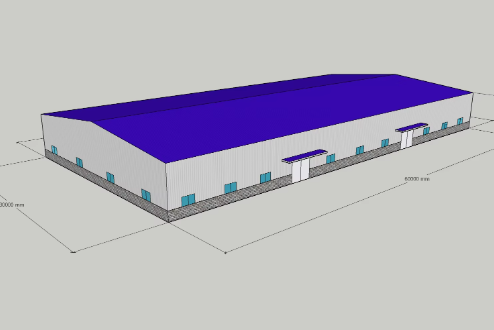

The warehouse layout can be designed according to storage capacity, pallet quantity and operation requirements. Large internal space supports efficient loading, storage and distribution operations.
The cold storage warehouse can be equipped with suitable refrigeration systems according to room size, temperature requirements and operating conditions. System configuration support is available for different cold chain applications.

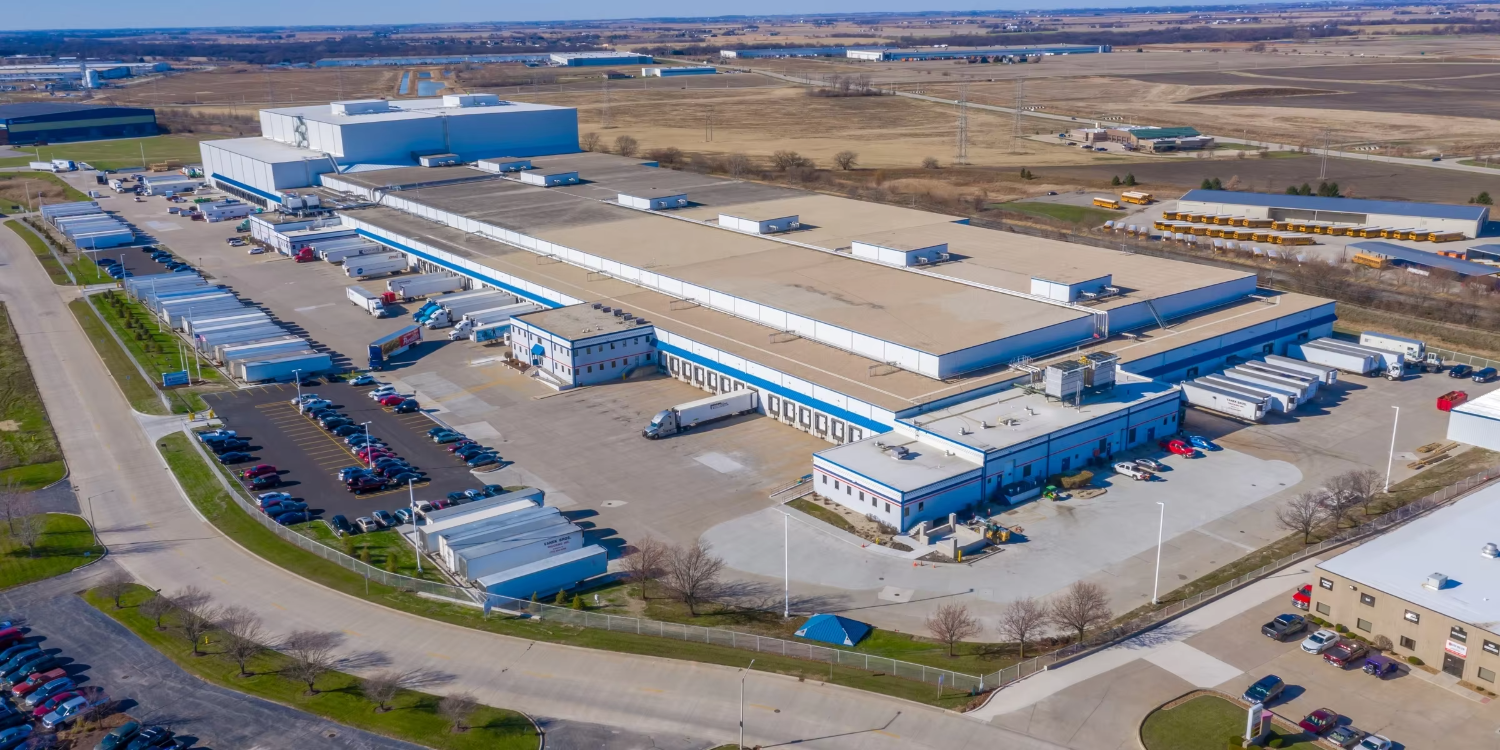

Suitable for frozen food warehouses, food processing facilities, agricultural product storage, pharmaceutical storage and cold chain distribution centers with different temperature requirements.
| Item | Specification |
|---|---|
| Structure | Steel Portal Frame |
| Steel Grade | Q355B / ASTM A572 |
| Span | Up to 60m |
| Temperature | -40°C to +15°C |
| Panel | PU/PIR Sandwich Panel |
| Refrigeration | Bitzer/Copeland/Danfoss |
| Design Standard | AISC/Eurocode/EN1090 |
| Service Life | 50 Years |
| Our Quality Control Numbers (2026 YTD) | |
|---|---|
| Raw Material Rejection Rate: | < 0.3% |
| Dimensional Accuracy: | ± 1mm |
| Pre-shipment Defect Rate: | < 0.1% |
| Installation Error Rate: | < 0.5% |
| Customer Complaint Rate: | < 0.05% |

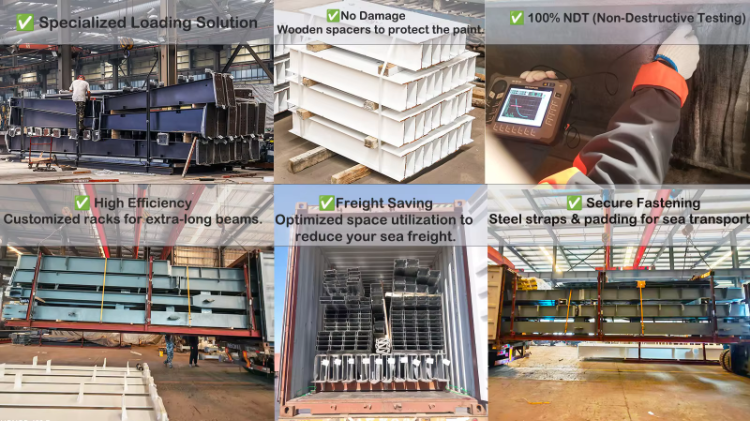

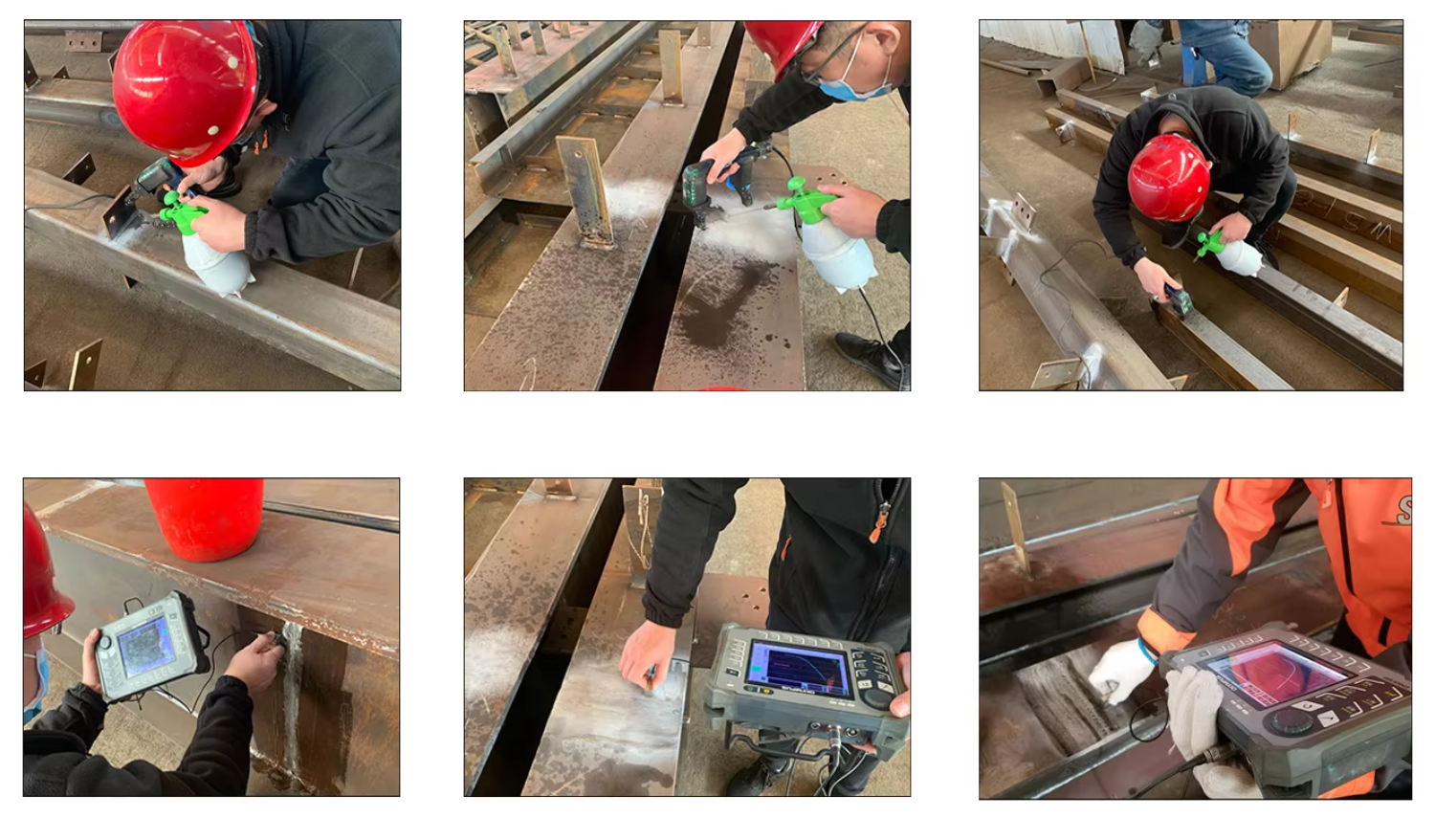

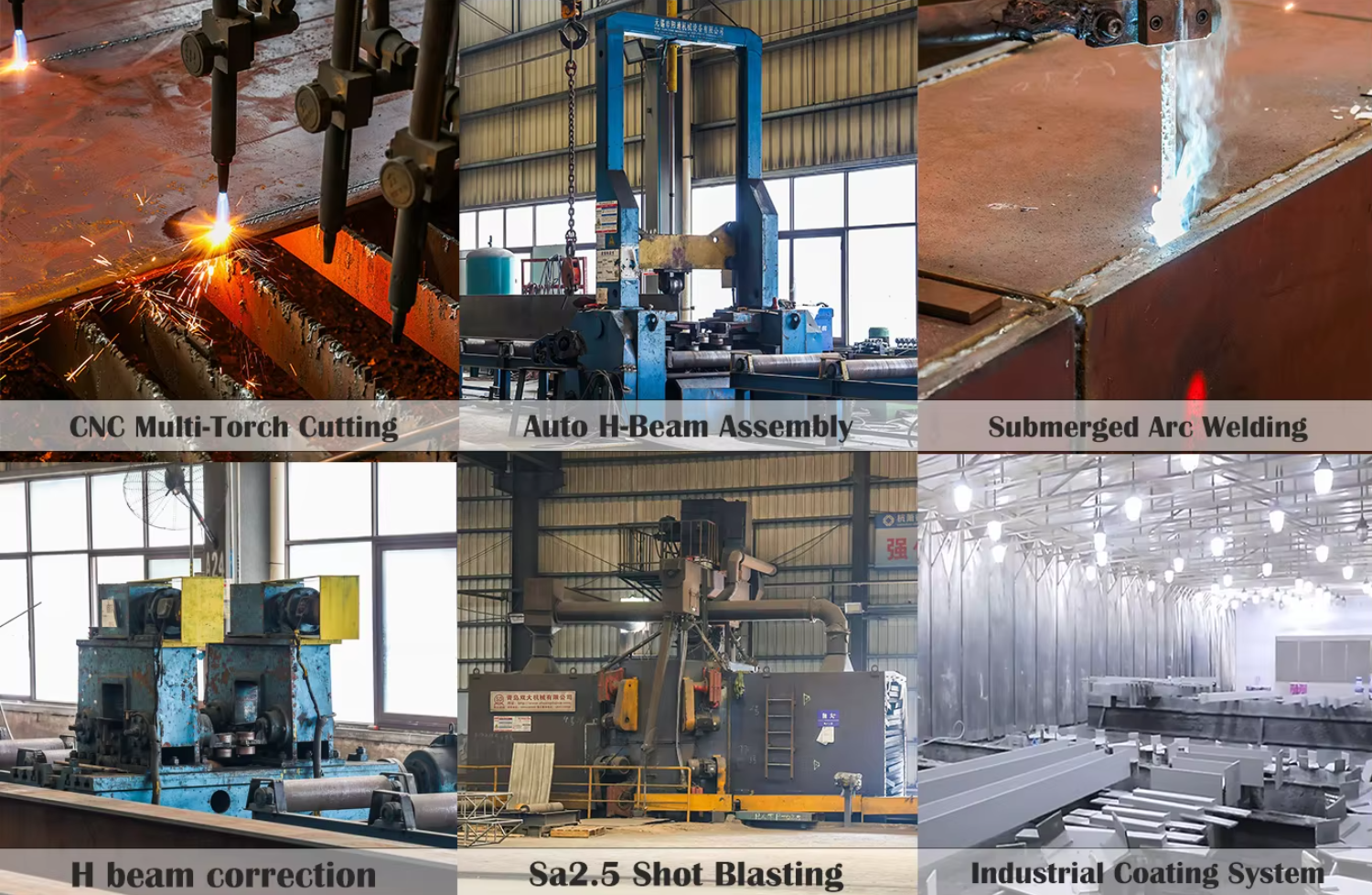

Every stage from fabrication to packing is checked under a controlled process.
Please provide warehouse size, storage application, temperature requirement, location and storage capacity. We will recommend a suitable cold storage configuration based on your project needs.
The warehouse can be designed for chilled, frozen and deep freezing applications. Typical temperature ranges include +15°C to 0°C for chilled storage and -18°C to -40°C for frozen storage.
We use PU/PIR insulated sandwich panels with different thickness options according to temperature requirements, climate conditions and energy performance needs.
Yes. The layout can be designed according to pallet quantity, storage capacity, loading area, operation process and customer requirements.
Yes. We can provide refrigeration system configuration according to warehouse size, temperature range and operating conditions, including suitable refrigeration equipment and control systems.

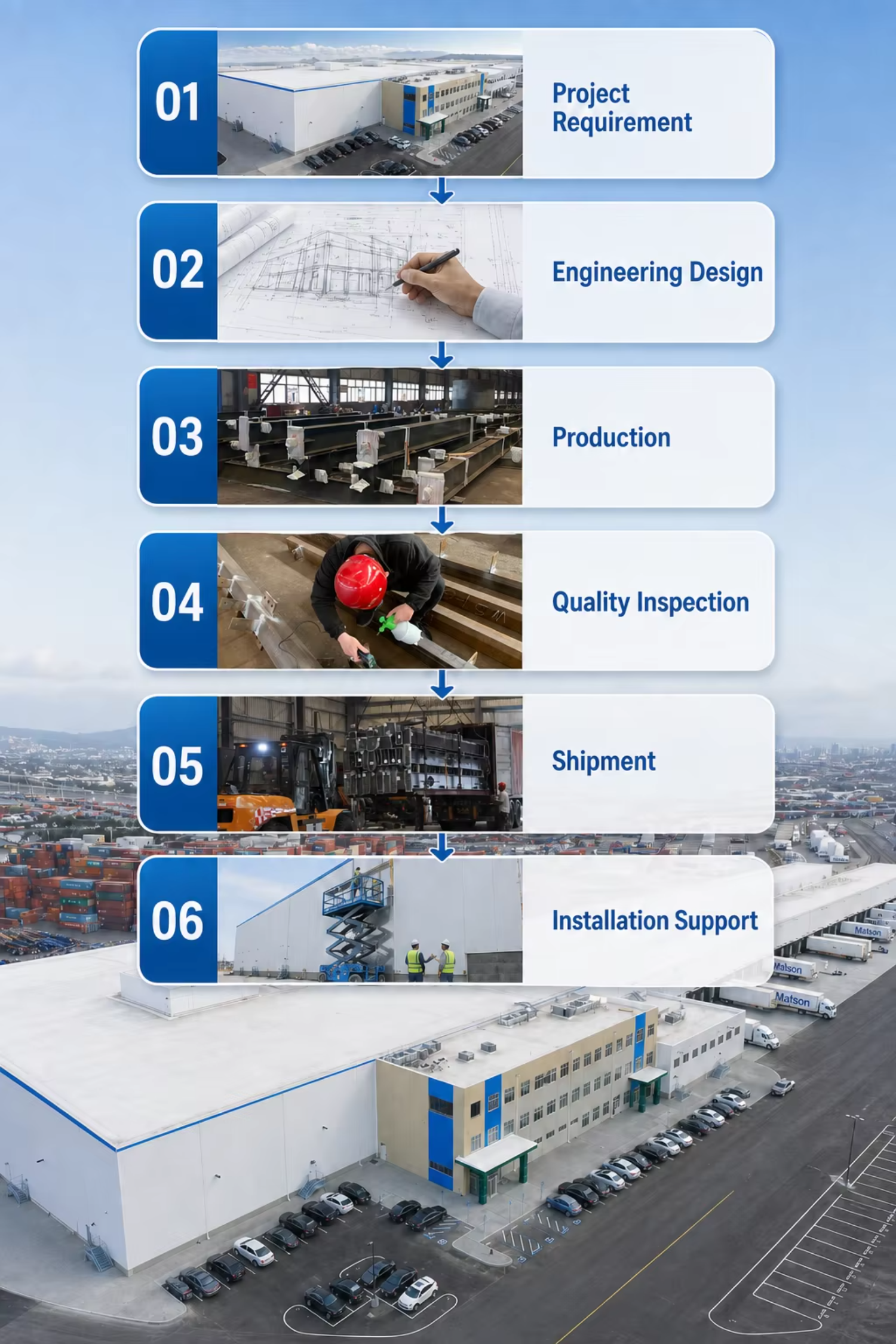

The project schedule depends on warehouse size, equipment configuration and design requirements. The process includes design, production, inspection, shipment and installation support.
Our sales engineers respond to project questions during working hours (GST+4).
