What types of sandwich panels does Emaar manufacture?

Emaar Industries manufactures roof and wall sandwich panels with PUR (polyurethane), PIR (polyisocyanurate) and Rockwool (mineral wool) cores, plus dedicated cold room panels for chillers and freezers. The range serves warehouses, factories, logistics hubs, commercial buildings and cold storage facilities.

Can Emaar provide customized sandwich panel solutions for specific project requirements?

Yes. Panel length, thickness, core type, steel skin, coating and colour are configured per project. Buyers typically share drawings, spans, design loads and the required thermal or fire performance so the technical team can recommend a suitable panel build-up and accessories.

What core materials are available for Emaar's sandwich panels?

Three core families are available: PUR for cost-efficient thermal insulation, PIR for higher thermal efficiency with improved fire behaviour compared with PUR, and Rockwool for non-combustible, fire-focused and acoustic applications.

How do Emaar's Rockwool sandwich panels differ from other panel types?

Rockwool is a stone-based mineral fibre that is inherently non-combustible, so Rockwool panels are selected where fire resistance and sound reduction matter most, such as fire compartment walls, plant rooms and high-occupancy buildings. PIR and PUR panels are lighter and deliver more insulation per millimetre of thickness.

Do Emaar's sandwich panels comply with international standards?

Emaar Industries operates certified manufacturing and quality processes. Current certificates and test documentation are published on the certificates page and project-specific datasheets can be requested to match consultant and authority specifications.

What finishes are available for Emaar's sandwich panels?

Panels are commonly supplied with pre-painted galvanized or aluminium-zinc coated steel skins in a range of colours and surface profiles. Coating systems can be selected for the exposure conditions of the site, including coastal and high-UV environments typical of the Gulf region.

What thickness options are available for Emaar's sandwich panels?

Thickness is chosen according to span, load and thermal targets. The range covers roofing panels from 50 mm up to heavily insulated cold room panels of 200 mm for low-temperature storage. The technical team confirms the optimal thickness for each application.

Product Description

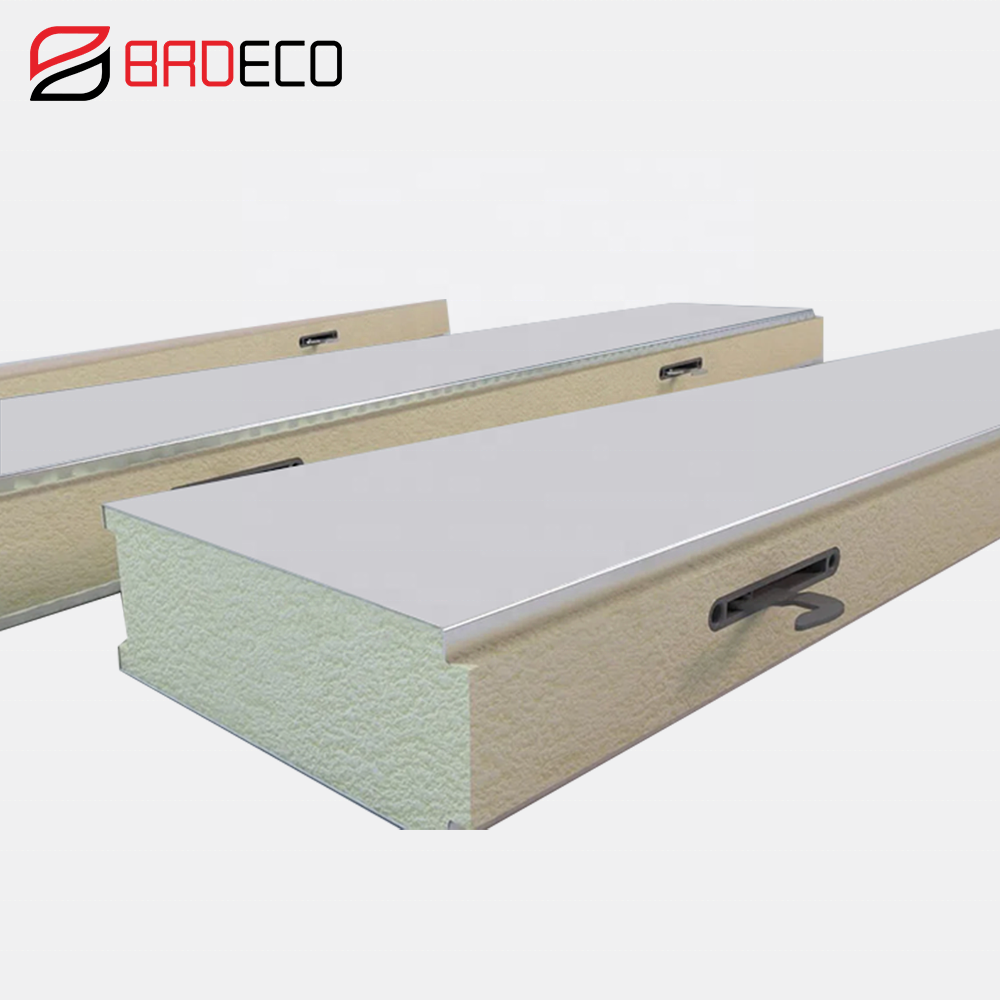

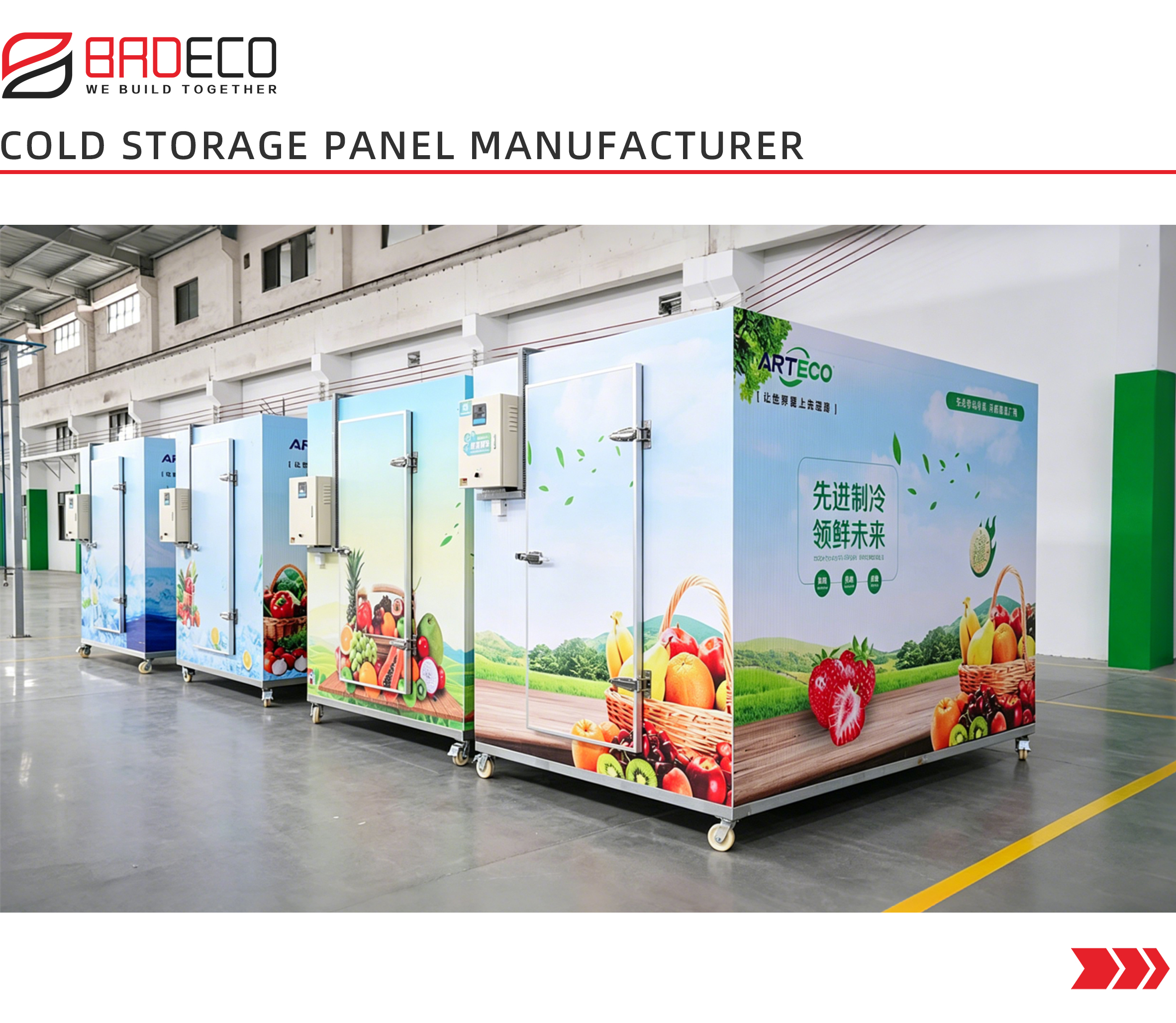

CUSTOMIZED CAM LOCK PANELS

BRDECO Designed specifically for small and medium-sized cold storage facilities and cold chain scenarios requiring flexible assembly and disassembly, this system balances insulation efficiency with ease of construction. It can be widely used in refrigerated, frozen, and controlled atmosphere storage facilities in the food, pharmaceutical, chemical, catering, and logistics industries.

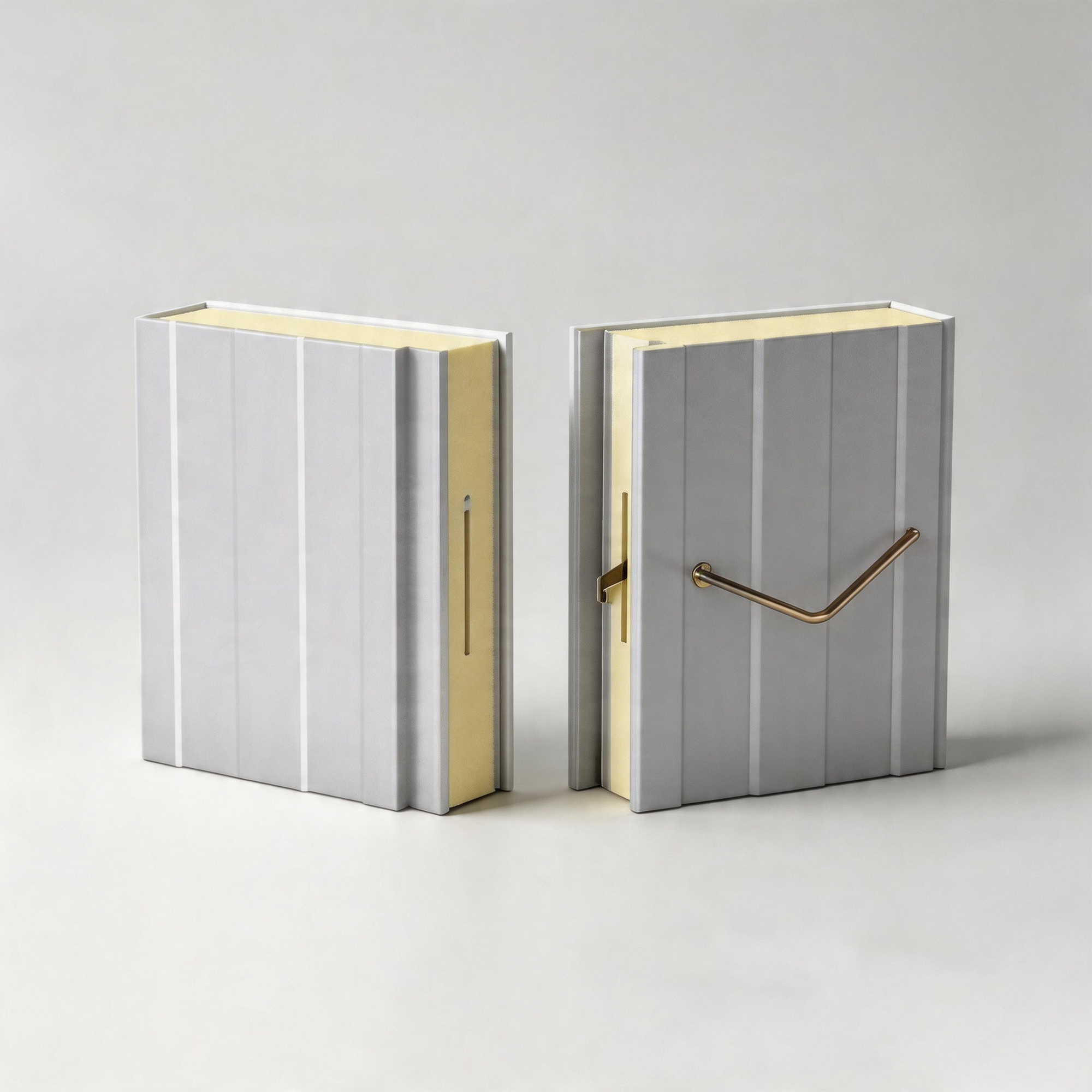

Name	Cam Lock Cold Room Panels
Manufacture	Discontinuous manufacturing
Insulation core	PU

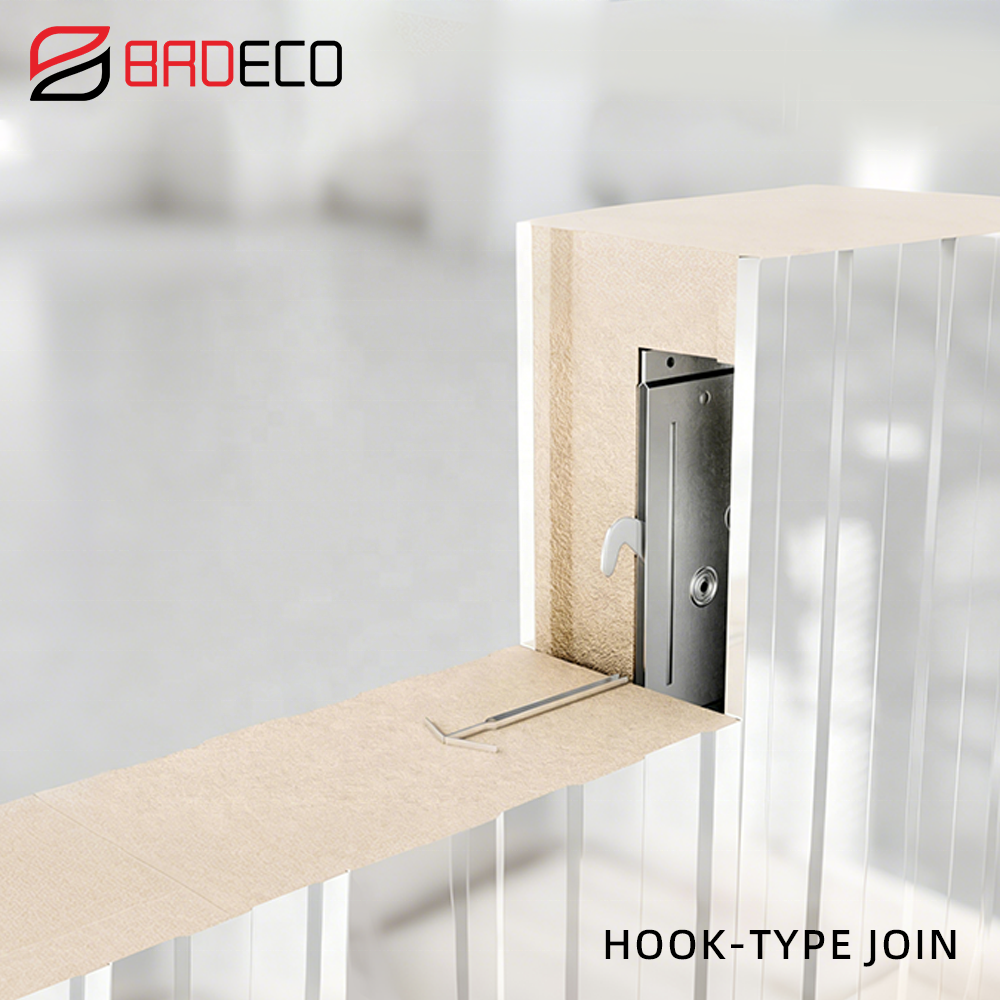

Fastening system	Eccentric hook lock
Thickness [mm]	50 75 100 120 150 200
Width [mm]	950
Length [mm]	Customized
Surface color	Standard RAL palette
Surface material	Color steel / Stainless steel / Aluminum-magnesium-manganese

WHAT ARE CUSTOMIZED CAM LOCK PANELS

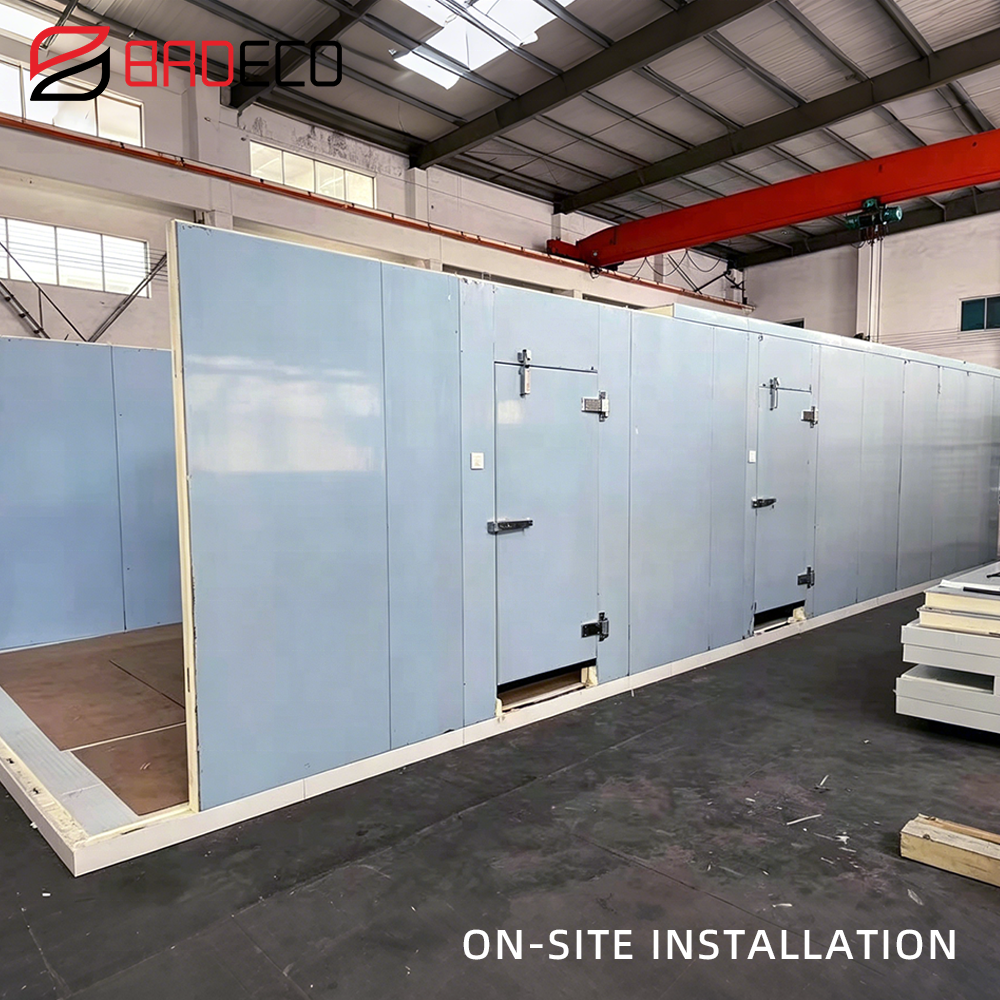

Customized cam lock panels are factory-insulated modular panels used to construct cold rooms and cold storage facilities. Unlike standard panels, these are engineered to match specific dimensions, insulation thickness, temperature ranges, and application needs.

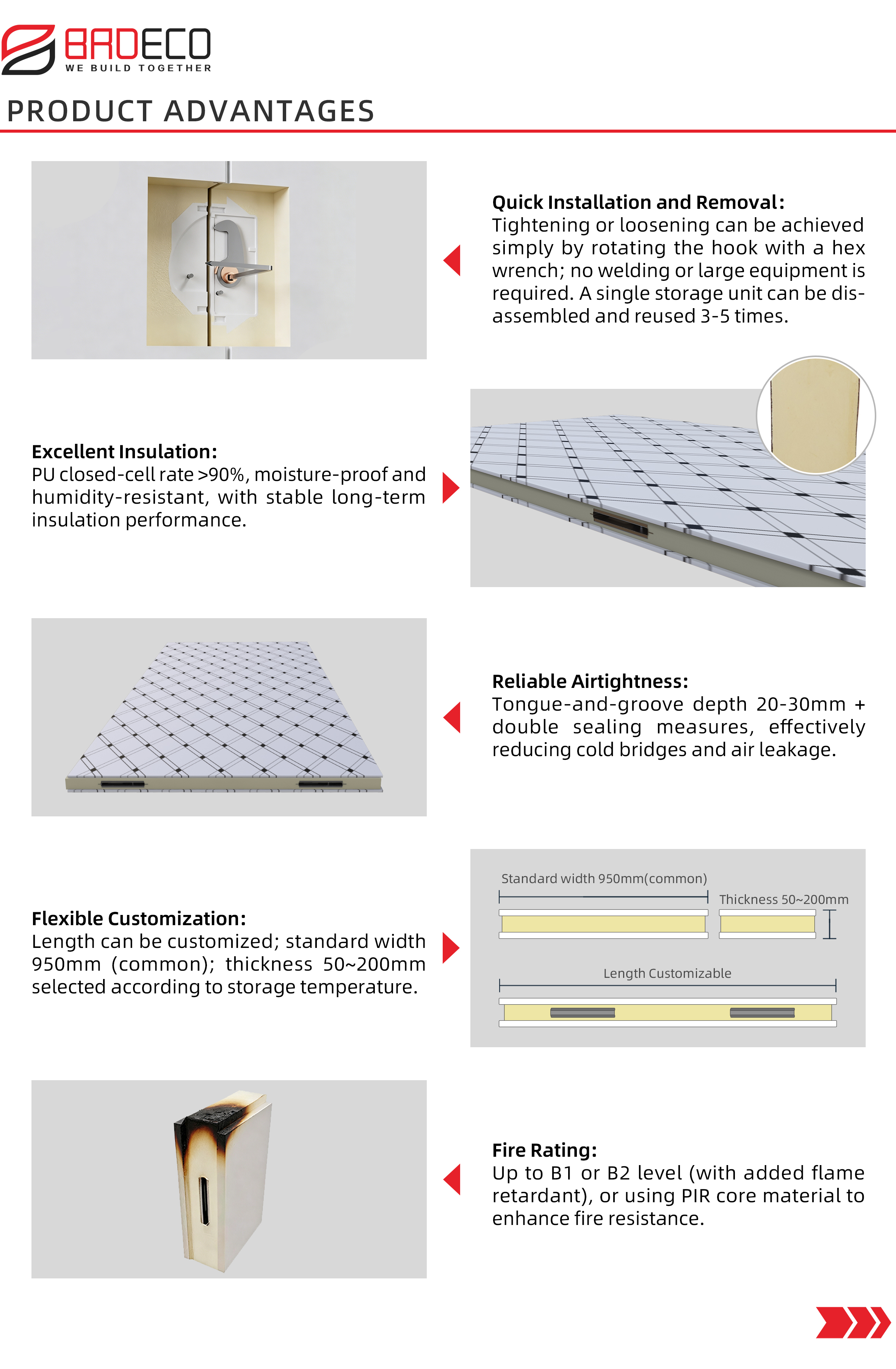

PRODUCT ADVANTAGES

Thanks to the cam lock mechanism, panels interlock tightly, ensuring: Superior insulation, Faster installation, Minimal air leakage,Long-term structural stability.

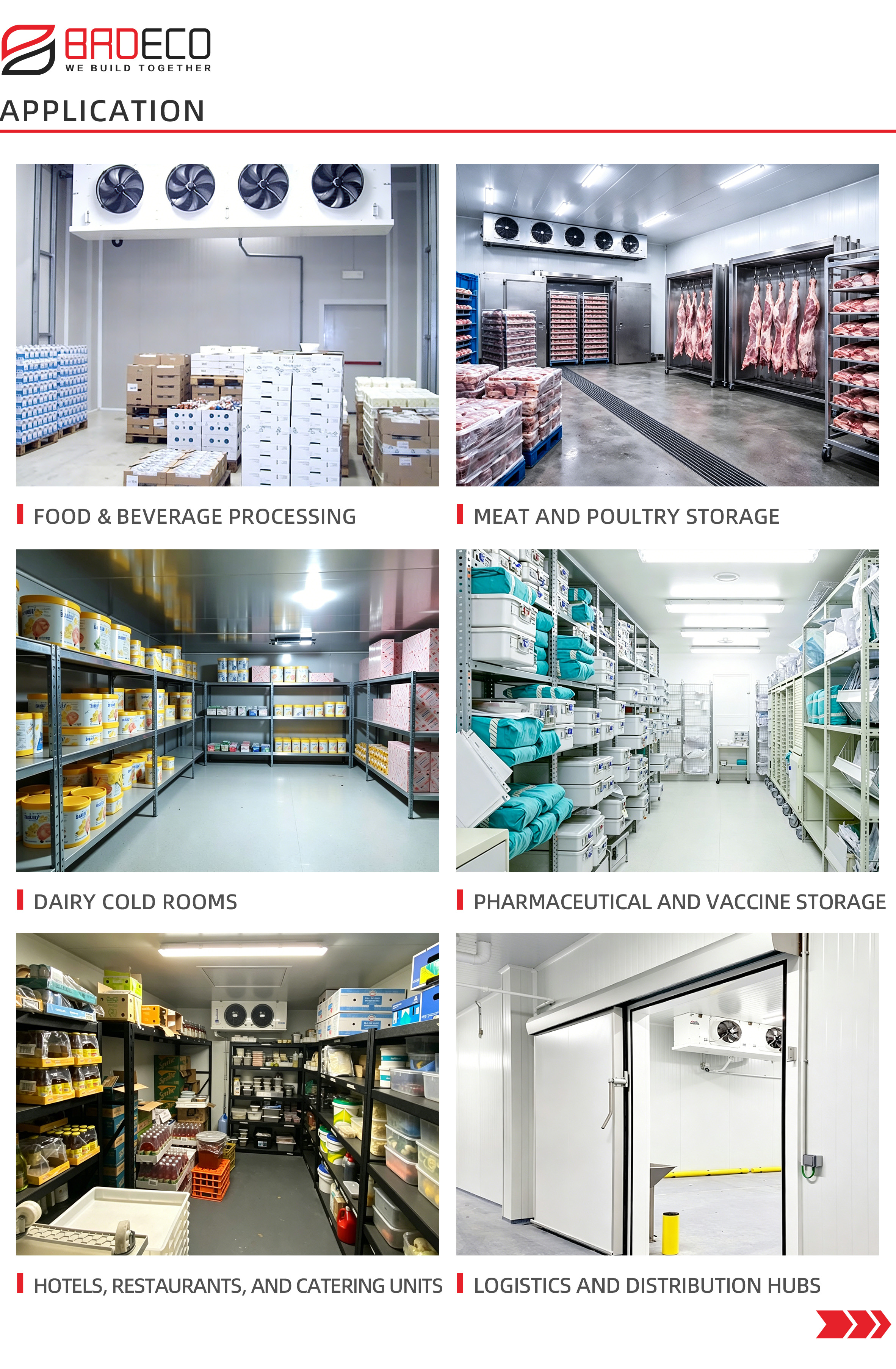

WHERE ARE CUSTOMIZED CAM LOCK PANELS COMMONLY USED?

Customized cam lock panels are widely used across industries, including: Food & beverage processing, Meat and poultry storage, Dairy cold rooms, Pharmaceutical and vaccine storageHotels, restaurants, and catering units, Logistics and distribution hubs

Why Choose Us

1. FACTORY AREA 300,000 M2

The BRDECO Group operates a modern smart manufacturing industrial park spanning 300,000 square meters, with an annual production capacity of several million square meters. The company specializes in building envelope systems, including insulation and decorative building materials such as sandwich panels, cleanroom panels, and cold storage panels, as well as exterior wall cladding systems such as flexible clay tiles, metal carved panel, and integrated panels. The facility is capable of supplying materials to multiple large-scale projects simultaneously, thereby ensuring timely delivery.

2. PRODUCTION LINES 10 +

We have introduced advanced continuous automated production lines from both domestic and international sources to achieve full-process automation, covering everything from steel coil uncoiling, roll forming, core material filling, and adhesive lamination to cut-to-length processing. The production process is monitored in real time by a central control system, ensuring high dimensional accuracy, consistent batch quality, and superior surface finish.

3. QUALITY CERTIFICATE

BRDECO's sandwich panel products possess core certifications including: fire safety performance test reports, EU CE certification, Saudi Arabian and Middle Eastern SABER certification, and Malaysian BOMBSIRIM certification. Based on these certifications, our factory has also obtained ISO quality management system certification and SGS third-party authoritative certification. From the production process to the final product, it provides comprehensive quality assurance, helping sandwich panels comply with relevant regulations and be efficiently exported to global markets.

4. 30 YEARS OF EXPERIENCE

With 30 years of experience in export and manufacturing, we understand the usage standards and material quality requirements of your country. We have a team of top-tier engineers and designers in the industry who provide seamless, one-on-one communication and high-qualit

5. SUPPORT & SERVICES

BRDECO offers six complimentary support services, all provided with sincere dedication: 1. Free design proposals; 2. Free renderings; 3. Free product test reports; 4. Free installation guidance; 5. Free technical support; 6. Free sample shipping.
