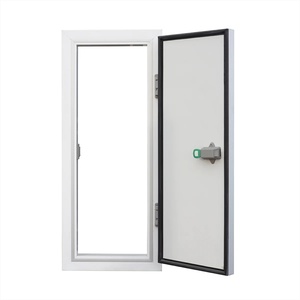

Reinforced hygienic stainless and color-coated steel manual door assemblies for institutional kitchens and logistics warehouses.
Turnkey pre-engineered steel frames integrated with heavy-gauge composite decking and high-performance PIR insulation.
Factory-engineered modular cold room systems featuring high-efficiency refrigeration units and insulated floor assemblies.
Precision CNC-folded flashings, closure strips, and edge profiles engineered to provide weather-tight floor slab and wall perimeters.
In modern multi-story commercial and industrial framing, selecting a vetted China steel floor deck supplier is an exercise in structural mechanics, life-cycle durability, and supply chain risk mitigation. Galvanized steel floor decking serves as far more than sacrificial shuttering. In its wet-concrete stage, it acts as a rigid working platform and continuous formwork capable of supporting dead loads, construction crews, and hydrostatic pressure without intermediate propping. Once the concrete reaches design curing strength, the steel profile and cured slab achieve full composite structural action through mechanical embossment interlocking, chemical adhesion, and end-anchored shear studs welded directly through the deck into structural steel beams.
Information Gain & Design Criteria: The horizontal diaphragm action generated by roll-formed steel deck systems transfers critical seismic shears and lateral wind forces across the floor plates directly into vertical bracing elements or shear walls. According to the Steel Deck Institute (SDI C-2017) and Eurocode 4 (EN 1994-1-1), the shear transfer capacity at the slab-beam boundary depends heavily on embossment depth ($h_e \ge 1.5\text{ mm}$), uniform zinc coating cohesion, and strict control of cold-work residual stresses across re-entrant and trapezoidal profile geometries.
Featuring wide rib pans (e.g., 51mm to 76mm rib depths) designed for high concrete volume savings, optimal shear stud placement, and standard commercial slab spans up to 4.5 meters unpropped.
Engineered with dovetail rib tops providing superior mechanical grip, flat ceiling soffit aesthetics, and integrated ceiling suspension clip slots without requiring post-drilled concrete anchors.
Profiles ranging from 100mm to 225mm in profile depth, allowing architectural open spaces, reduced steel framing weights, and heavy industrial mezzanine spans up to 6.0–8.5 meters.
Comprehensive metallurgical and section property thresholds utilized across global export contracts.
| Profile Model Type | Rib Depth (mm) | Effective Width (mm) | Base Metal Thickness (mm) | Standard Steel Grade | Galvanization (Z/AZ) | Typical Unpropped Span |
|---|---|---|---|---|---|---|
| Open Rib YX76-305-915 | 76 mm | 915 mm | 0.75 - 1.50 mm | S350GD / ASTM A653 Gr50 | Z180 - Z275 g/m² | 3.0 m - 4.2 m |
| Trapezoidal YX51-240-720 | 51 mm | 720 mm | 0.80 - 1.20 mm | S350GD / S450GD | Z120 - Z275 g/m² | 2.4 m - 3.4 m |
| Dovetail YX51-200-600 | 51 mm | 600 mm | 0.80 - 1.50 mm | S350GD / Grade 50 | Z275 Triple-Spot | 2.2 m - 3.2 m |
| Deep Span YX150-375-750 | 150 mm | 750 mm | 1.00 - 1.60 mm | S450GD / S550GD High-Yield | Z275 / SuperDyma Mg-Al | 5.0 m - 7.2 m |
| Non-Composite Formdeck 15-225 | 15 mm | 900 mm | 0.60 - 0.90 mm | DX51D Commercial Quality | Z120 - Z180 g/m² | 1.0 m - 1.8 m |
To prevent horizontal shear delamination under cyclic or seismic loading, our production sequences incorporate cold-roll-formed mechanical embossments along the web and flange sectors. These micro-indentations engage directly with the concrete aggregate matrix. In structural design calculations, the effective moment of inertia ($I_{eff}$) during the wet construction stage must be checked against deflection limits:
Slab Deflection Criteria: Maximum deflection under dead load + wet concrete must not exceed $\Delta \le L/180$ or 20mm for construction safety, while serviceability criteria under superimposed live load must satisfy $\Delta \le L/360$ (or $L/480$ for crack-sensitive finishes). When specifying floor decking for cold-chain facilities or cold-storage structural lofts, steel decks must also be checked for low-temperature embrittlement and thermal bridging mitigation.
Strategic purchasing insights for EPC contractors, real estate developers, and international structural steel fabricators.
Global procurement teams are shifting toward index-linked Hot-Rolled Coil (HRC) and Galvanized Steel Coil contracts. Top Chinese mills directly link coil purchasing to Shanghai Futures Exchange (SHFE) spreads, shielding long-cycle multi-phase projects from sudden steel price inflation.
With the EU Carbon Border Adjustment Mechanism (CBAM) and LEED v4.1 certifications gaining traction, tier-1 suppliers utilize scrap-based Electric Arc Furnace (EAF) production lines to achieve lower Embodied Carbon ($< 1.8\text{ t CO}_2/\text{t steel}$) backed by ISO 14025 Environmental Product Declarations.
Forward-thinking buyers avoid single-item shipments. Bundling cold-rolled steel floor decking together with heavy cold-formed Z/C purlins, PIR roof/wall sandwich panels, and color-matched flashings maximizes container cube utilization to 98%+, lowering ocean freight costs per square meter.
Transition from standard pure-zinc hot dipping to Zn-Al-Mg (ZAM) coatings. Magnesium additions create a dense, self-healing simonkolleite barrier that seals cut edges against corrosion in coastal and industrial areas.
Direct integration of Revit, Tekla, and IFC building models with CNC roll-forming lines. Bundles are nested, cut to precise structural span lengths, and pre-punched for service penetrations, cutting site cutting waste to zero.
Advanced high-strength micro-alloyed steel allows thin gauge sheet reduction ($0.75\text{ mm}$ achieving equivalent capacity of standard $1.0\text{ mm}$ $S250$ material), cutting overall slab dead loads and structural framing weights.
Composite floor decking paired with factory-cut non-combustible rock wool core inserts and fire-barrier coatings, attaining 120-minute to 240-minute certified fire ratings under BS 476 and ASTM E119 criteria.
Combining world-class cold roll-forming capabilities with full building envelope engineering.
Continuous heavy-duty forming lines equipped with precision CNC hydraulic cutoff stations, producing profiles from 0.70mm to 1.60mm base metal thickness with zero oil canning.
In-house laboratories verify base metal yield strength, tensile elongation, zinc coating mass adherence via wet chemical strip testing, and concrete-to-steel composite shear bond performance.
Strategic export coordination handling ocean container packaging, shrink-wrapped steel bundling, seaworthy moisture-proof packaging, and direct overland delivery to GCC, Africa, and Southeast Asia.
Direct supply capability across the complete structural envelope: composite steel decking, cold-formed C/Z purlins, high-performance PIR/PUR cold room panels, rock wool fire walls, and flashings.
