What types of sandwich panels does Emaar manufacture?

Emaar Industries manufactures roof and wall sandwich panels with PUR (polyurethane), PIR (polyisocyanurate) and Rockwool (mineral wool) cores, plus dedicated cold room panels for chillers and freezers. The range serves warehouses, factories, logistics hubs, commercial buildings and cold storage facilities.

Can Emaar provide customized sandwich panel solutions for specific project requirements?

Yes. Panel length, thickness, core type, steel skin, coating and colour are configured per project. Buyers typically share drawings, spans, design loads and the required thermal or fire performance so the technical team can recommend a suitable panel build-up and accessories.

What core materials are available for Emaar's sandwich panels?

Three core families are available: PUR for cost-efficient thermal insulation, PIR for higher thermal efficiency with improved fire behaviour compared with PUR, and Rockwool for non-combustible, fire-focused and acoustic applications.

How do Emaar's Rockwool sandwich panels differ from other panel types?

Rockwool is a stone-based mineral fibre that is inherently non-combustible, so Rockwool panels are selected where fire resistance and sound reduction matter most, such as fire compartment walls, plant rooms and high-occupancy buildings. PIR and PUR panels are lighter and deliver more insulation per millimetre of thickness.

Do Emaar's sandwich panels comply with international standards?

Emaar Industries operates certified manufacturing and quality processes. Current certificates and test documentation are published on the certificates page and project-specific datasheets can be requested to match consultant and authority specifications.

What finishes are available for Emaar's sandwich panels?

Panels are commonly supplied with pre-painted galvanized or aluminium-zinc coated steel skins in a range of colours and surface profiles. Coating systems can be selected for the exposure conditions of the site, including coastal and high-UV environments typical of the Gulf region.

What thickness options are available for Emaar's sandwich panels?

Thickness is chosen according to span, load and thermal targets. The range covers roofing panels from 50 mm up to heavily insulated cold room panels of 200 mm for low-temperature storage. The technical team confirms the optimal thickness for each application.

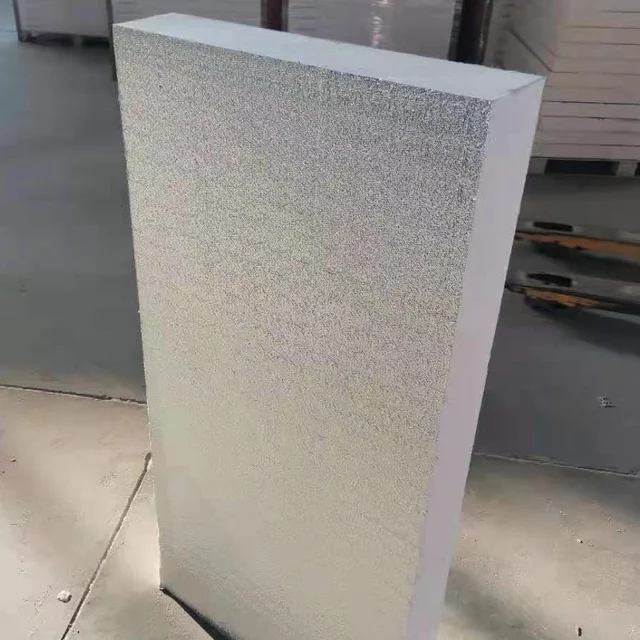

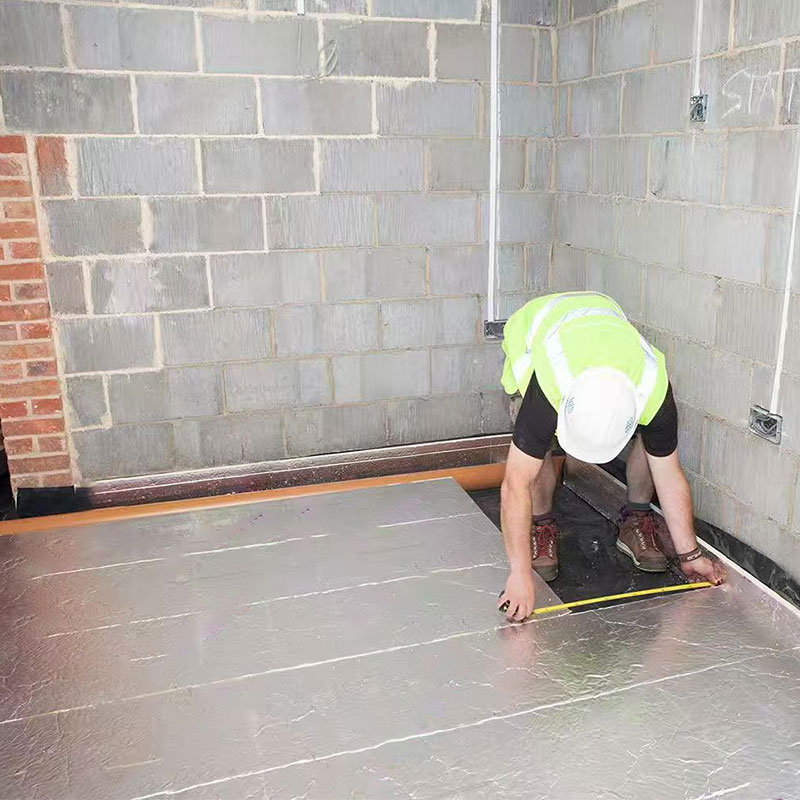

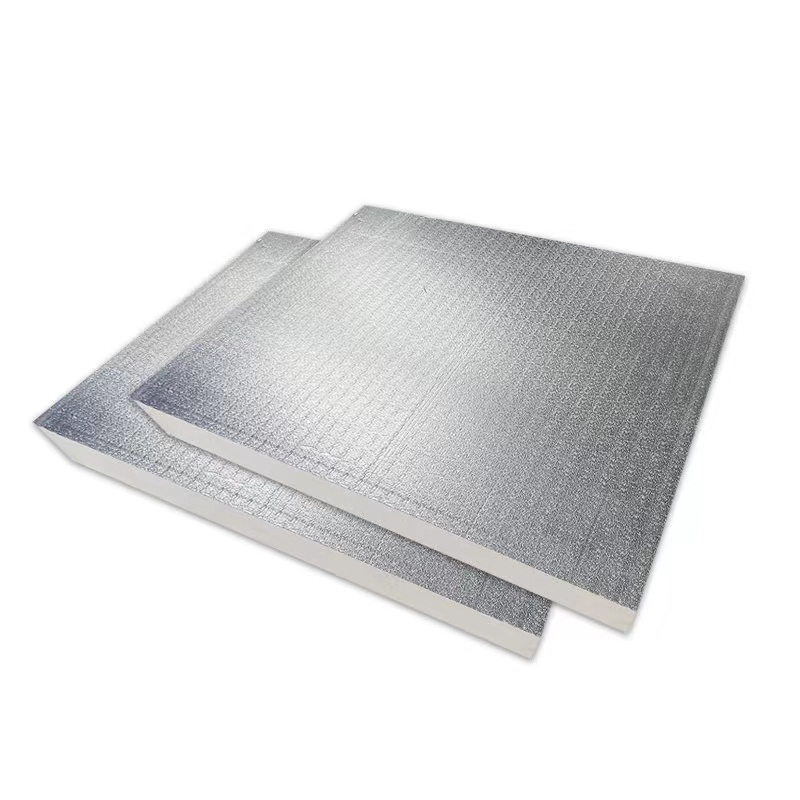

Easy Installation PF Insulated Panel Aluminum Foil Phenolic Foam Insulation Floor Board for Cold Room

1 / 5

Easy Installation PF Insulated Panel Aluminum Foil Phenolic Foam Insulation Floor Board for Cold Room

Send Inquiry

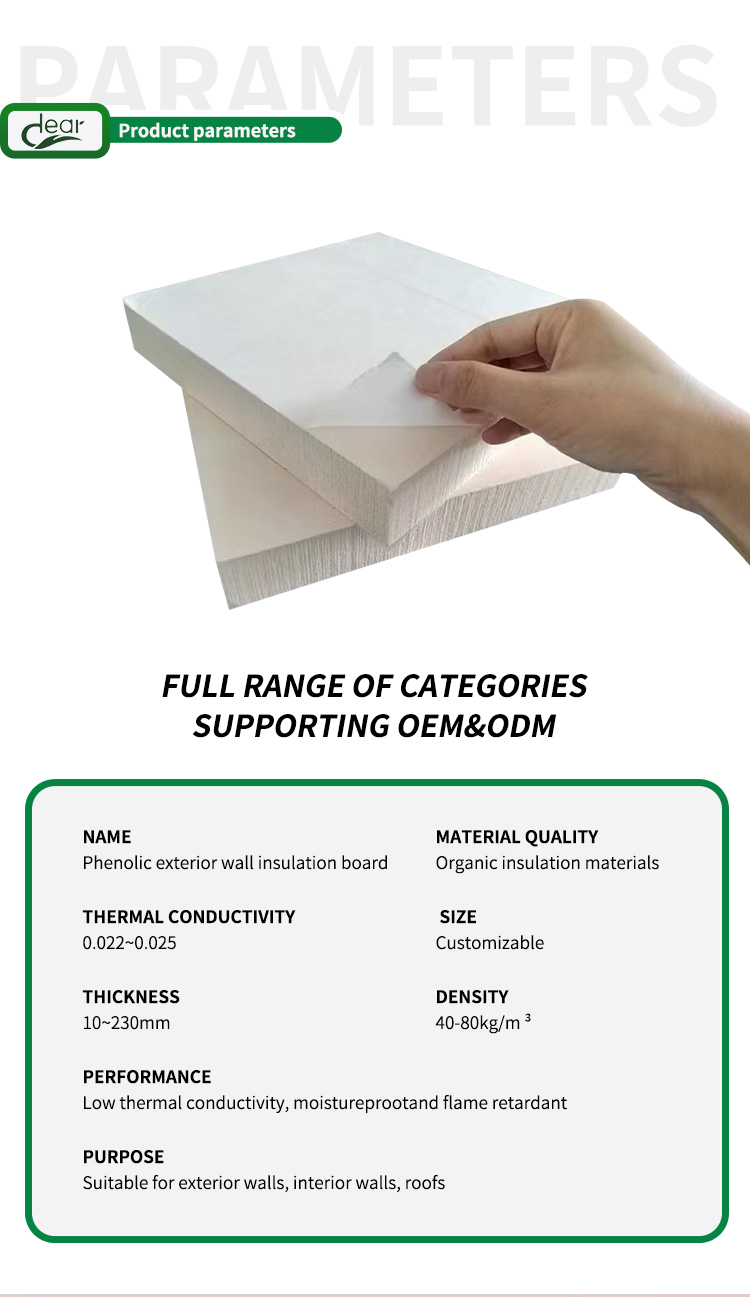

Product Description

Technical Specifications

Property	UNIT	TECHNICAL INDEX	NOTES
Smoke density grade	%	6	——
Density	Kg / m³	40 - 100	——

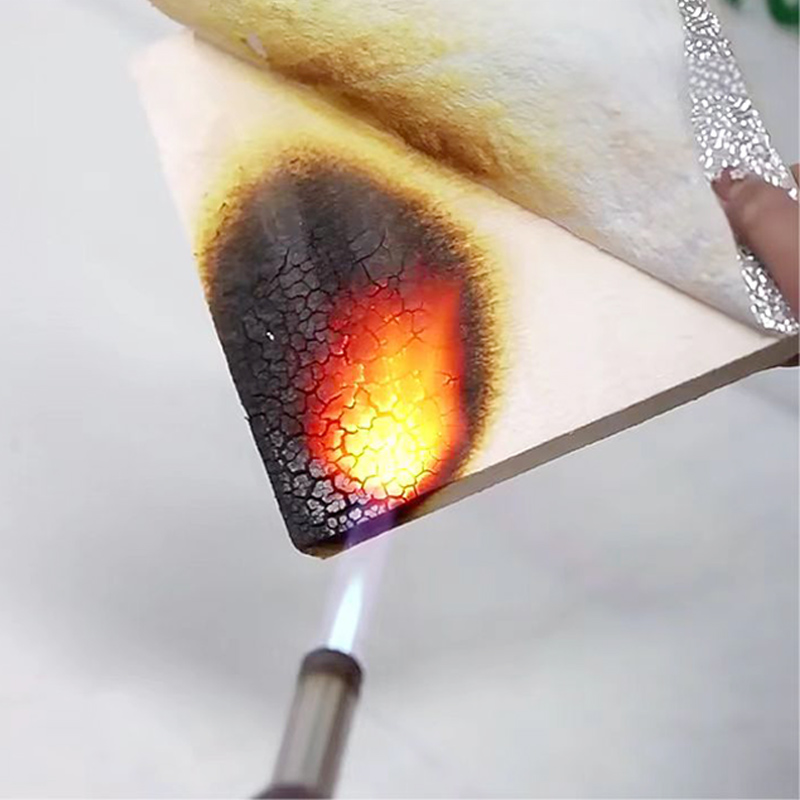

Combustion grade	——	B1	Fireproof / non-combustible
Calorific value	MJ/kg	≤4.2	——
Heat release	MJ/m²	≤16.8	——
Working temperature	℃	-196 ~ +120	——
Panel specifications	mm	1200*1000	(Other specifications need to be customized)
Thickness	mm	10 - 230	——
Thermal conductivity	W /m . k	0.020 - 0.024	Superior to National Standard
Compressive strength	Kpa	≥150	——
Bending fracture force	N	34	——
Water absorption	%	<7	——
R value 10cm thickness	——	Around 5	——

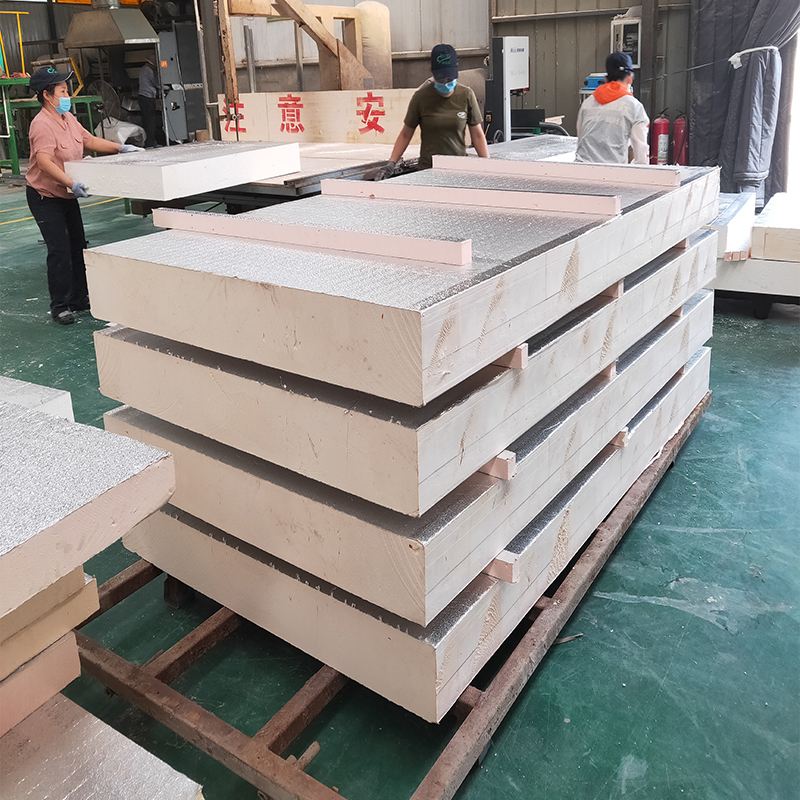

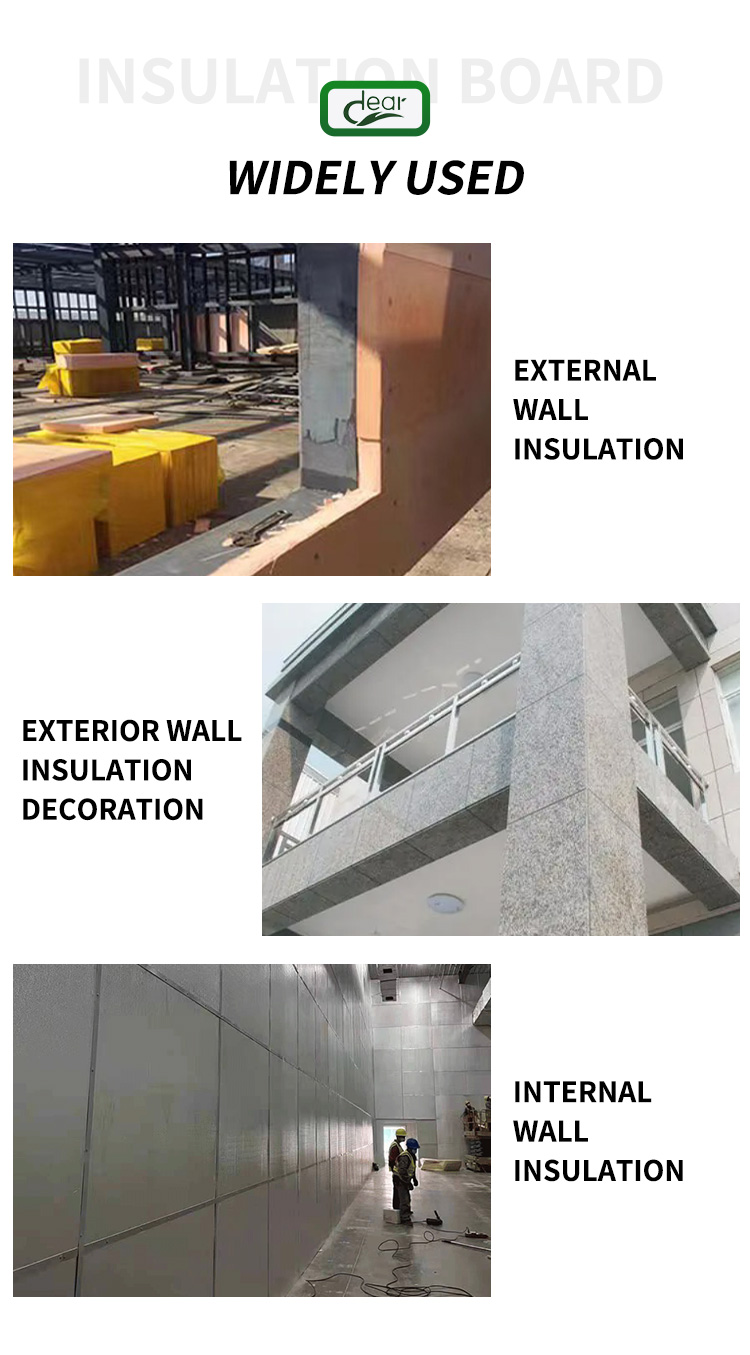

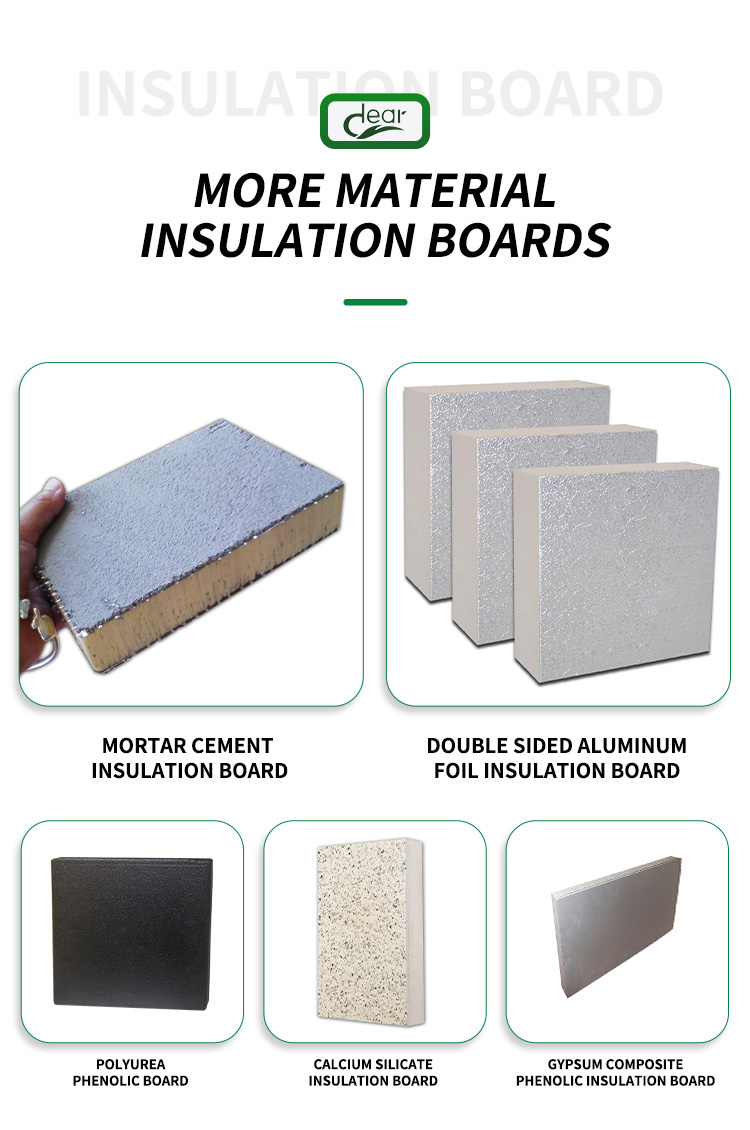

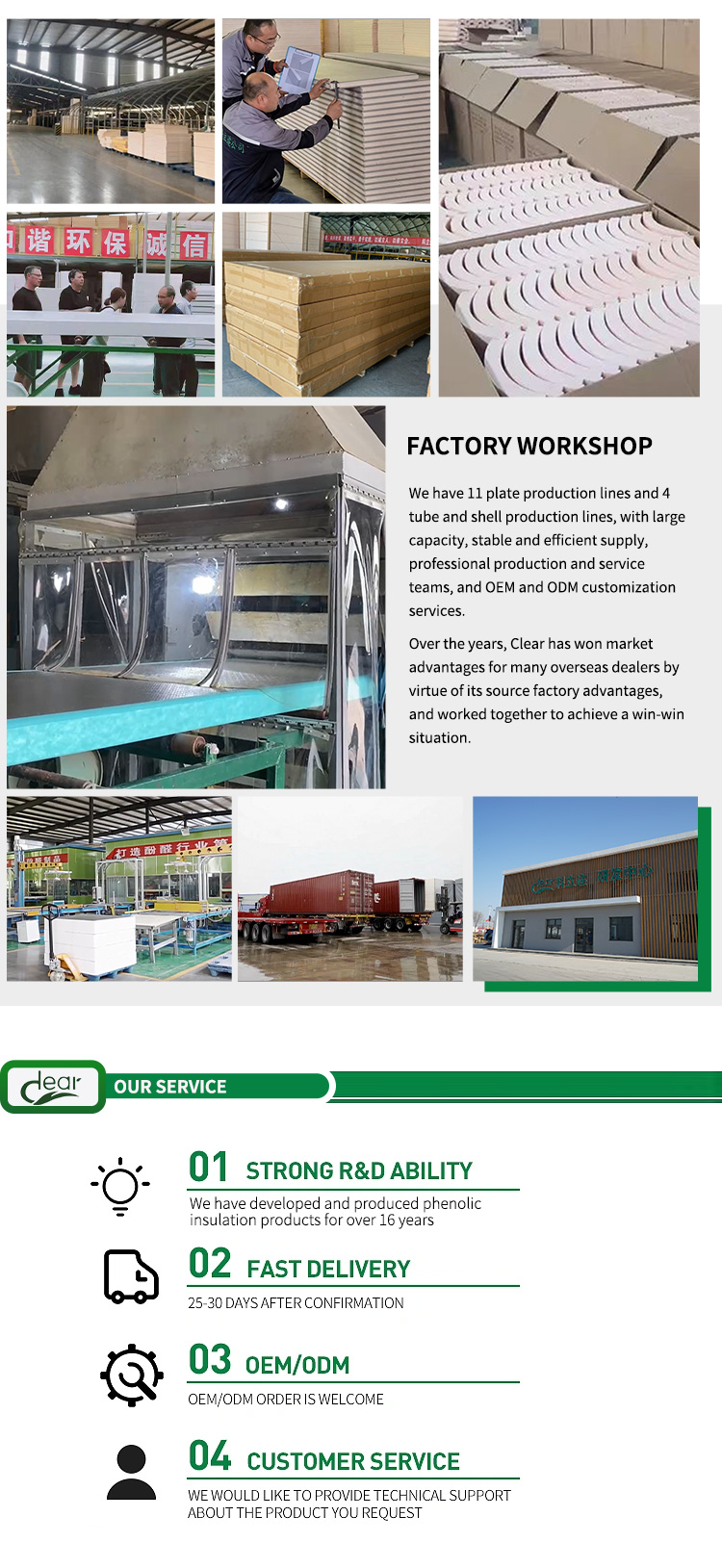

Product & Workshop Display

Frequently Asked Questions

Q Are you trading company or manufacturer ?

We are factory and trade company.

Q How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q Do you provide samples ? Is it free or extra ?

Yes, we could offer certain sample for free charge but do not pay the cost of freight. Please contact me to confirm.

Q What is your terms of payment ?

Payment ≤ 3000USD, 100% in advance. Payment > 3000USD, 30% in advance, balance before shipment.

Q Payment Options?

Online: T/T, Credit Card, E-checking By Alibaba.
Offline: L/C, T/T, Paypal, Western Union.
